    3FE Gpon Epon Compatible Modem

    Ask Lasest Price
    Brand Name : UT-King
    Model Number : UT-XP6421
    Certification : iso
    Price : 15-18 usd/pcs
    Payment Terms : T/T, Western Union, MoneyGram,Credit Card
    Supply Ability : 1000pcs/week
    Delivery Time : 3-7 days
    MOQ : 1 PCS
    • Product Details
    • Company Profile

    3FE Gpon Epon Compatible Modem

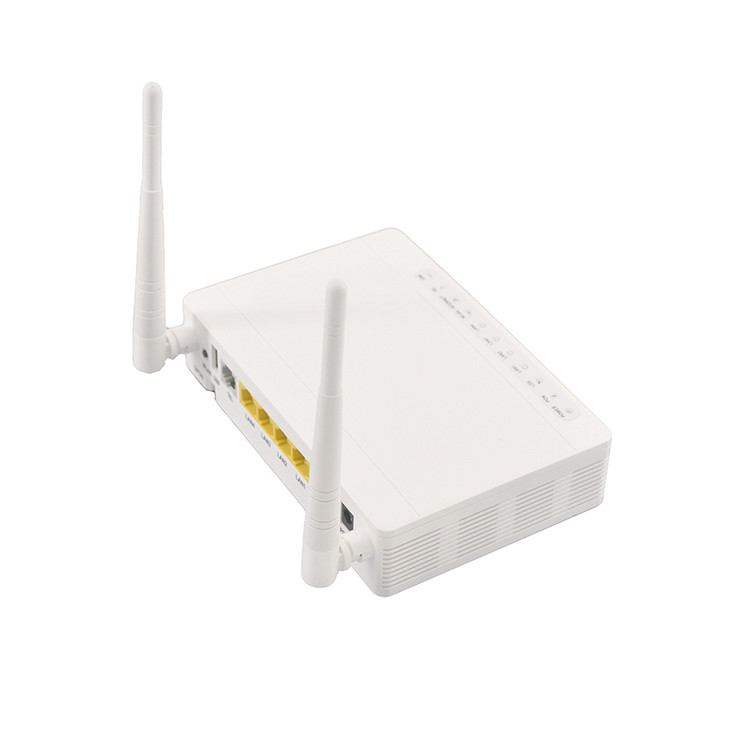

    UT-King XPON ONU FTTH Fiber Optic Modem Optical Network Unit 1GE+3FE+WIFI XPON ONT


    Description

    XPON ONU(UT-XP6421) is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, a next-generation Gigabit Passive Optical Network terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its XPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one XPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.

    Features

    • Complies with ITU-T G.984. x and IEEE802.3x, provides comprehensive GPON and EPON network compatibility
    • Downstream rates of up to 2.488Gbps and upstream rates up to 1.244Gbps
    • Fiber access and gigabit port provide incredibly fast transfer speeds
    • Supports OMCI and OAM remote management


    Specification

    Model No.UT-XP6421
    Interface

    1 *SC/UPC Port or 1 *SC/APC Port;
    1 *10/100/1000Mbps RJ45 Port;
    3 *10/100/1000Mbps RJ45 Port;
    1 *POTS,RJ11 Port;
    1 *WIFI(802.11b/g/n, 2T2R, 300Mbps,two external antenna)

    ChipsetRealtek, RTL9603C+RTL8192
    Data Rates & Wavelength

    Upstream:1.244Gbps, 1310nm
    Downstream:2.488Gbps, 1490nm

    Distance0~ 20Km Max
    External Power SupplyDC 12V/1A
    Dimensions (Length * Width * Height)145mm×105mm×25mm
    Weight (Full-Loaded)≤0.4kg
    Working temperature0°C~40°C
    Storage temperature:-40°C~70°C
    Relative humidity:10%~90%, non-condensing

    Item

    XP6421

    Quality of Service

    Service Flow Classification based on VLAN
    Schedule rules Support SP/WRR
    Upstream Priority Label Support 802.1D User Priority
    Rate Limit and Traffic shaping
    Congestion CONUrol Support Tail-Drop
    Advanced FeaturesUpstream and Downstream FEC
    Dynamic Bandwidth Allocation(DBA) support NSR/SR
    Up to 7 T-CONUs and 4095 GEM Ports
    Optical power detection, Dying Gasp
    Terminal Silent mechanism
    802.3az EEE Energy Conservation
    VLAN802.1Q tag VLAN
    VLAN transparent mode/VLAN translation mode/VLAN trunk mode
    Authentication based on SN and Password
    VLAN Auto Detect
    SecurityAES Encryption
    Packet Filter based on VLAN
    Voice

    Call protocol: SIP (IMS compatible), seamless compatible with all popular call agent.
    Integrate heartbeat function and support active/standby call agent.
    Voice coding: ITU-T G.711/G.723.1(5.3K/6.3Kbit/s)/G.729, auto-negotiate with call agent.
    Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length.
    Support high/low speed fax/Modem, bypass fax, and T38 fax.
    Support RFC2833 and redundant RFC2833, difference rings, MD5 authentication, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service.
    Multi-party conferencing.
    Line testing according to GR-909.
    IP address assignment: dynamic PPPoE/DHCP Client and static IP.
    Support WEB, CLI, TR069.
    Integrated OAM, XML, DHCP option 66 & 67 for auto configuration and firmware upgrade.
    Call loss is less than 0.01%.

    WIFI

    Integrated 802.11b/g/n, 300Mbps, 2T2R.
    Support 128 connections.
    Support WEP and WPA/WPA2 security protocols.

    ManagementManaged by Web, OMCI and Telnet,
    Specified the management IP,
    Reset to Factory default by Reset button or Web UI,
    Real-time statistics, Optical Diagnostic
    IGMPIGMP v2/v3
    IGMP Snooping/Proxy



    Detailed Images

    3FE Gpon Epon Compatible Modem3FE Gpon Epon Compatible Modem3FE Gpon Epon Compatible Modem3FE Gpon Epon Compatible Modem

    FAQ


    Q: Can I have a sample order for this product?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q: What about the lead time?
    A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than


    Q: Do you have any MOQ limit for sample order?
    A: Low MOQ, 1pc for sample checking is available

    Q: What’s your best price?
    A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.


    Q: Can you provide OEM/ODM service?
    A: Yes,we can.Please let us know your deatil requirements.


    Q: How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
