| Brand Name : | UT-King |
| Model Number : | UT-XP6411 |
| Certification : | ISO CE ROHS |
| Price : | 15-18 usd/pcs |
| Payment Terms : | T/T, Western Union, MoneyGram,Credit Card |
| Supply Ability : | 1000pcs/week |
| Delivery Time : | 3-7 days |
| MOQ : | 1 PCS |

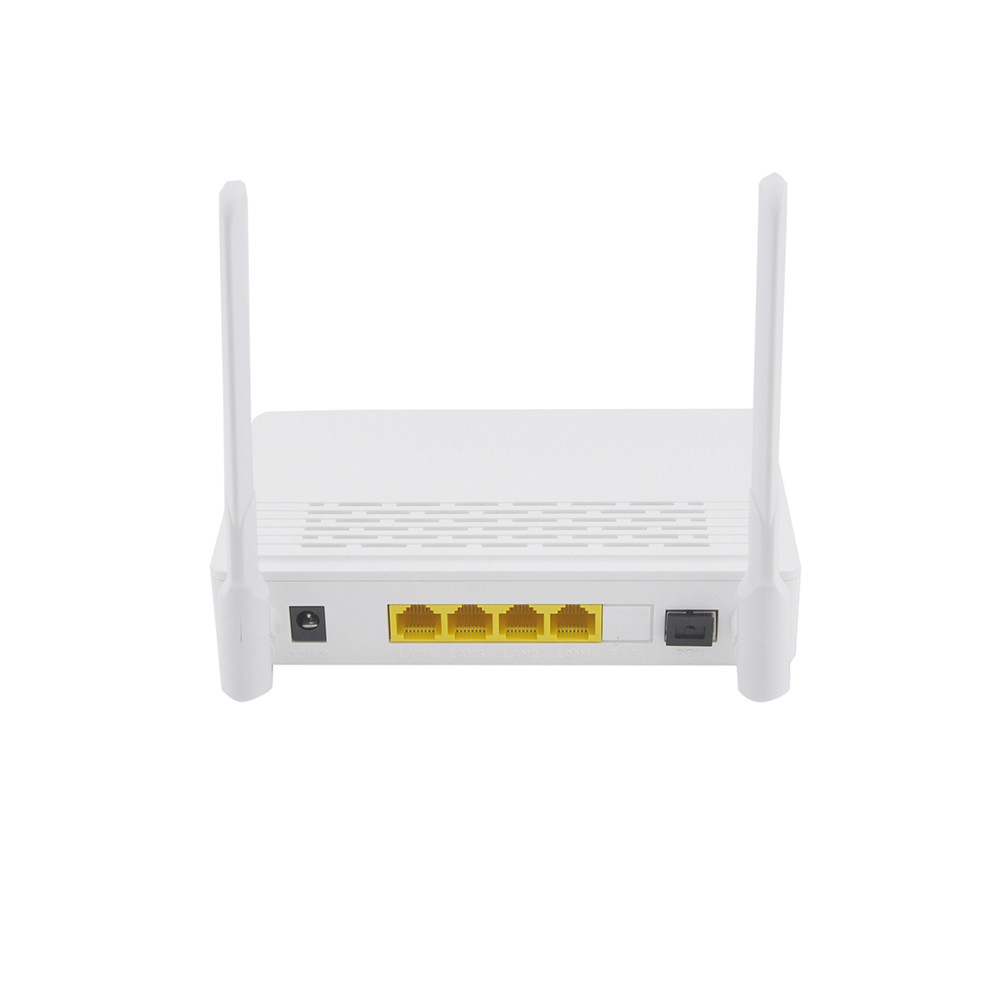

XPON ONU(UT-XP6411) is is designed as HGU (Home Gateway Unit) in
different FTTH solutions. The carrier-class FTTH application
provides different services access.our XPON ONU based on mature and
stable, cost-effective XPON technology.it adopts high reliability,
easy management, configuration flexibility and good quality of
service guarantees to meet the technical performance of EPON
Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
Technical item | Details |
PON Interface | 1 GPON BOB (Class B+/Class C+) |
Receiving sensitivity: ≤-27dBm/≤-29dBm | |
Transmitting optical power: +0.5~+5dBm/+2~+7dBm | |
Transmission distance: 20KM | |
Wavelength | TX: 1310nm, RX: 1490nm |
Optical Interface | SC/UPC Connector |
Design Scheme | RTL9603C+RTL8192FR BOB(i7525BN) |
Chip Spec | CPU 950MHz,DDR2 128MB |
Flash | SPI Nor Flash 16MB |
LAN Interface | 1 x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE) auto adaptive
Ethernet interfaces. Full/Half, RJ45 connector |
Wireless | Compliant with IEEE802.11b/g/n, |
Operating frequency: 2.400-2.4835GHz | |
support MIMO, rate up to 300Mbps, | |
2T2R,2 external antenna 5dBi, | |
Support: multiple SSID | |
Channel: Auto | |
Modulation type: DSSS, CCK and OFDM | |
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM | |
LED | 9 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN4 |
Push-Button | 3,For Function of Reset,WLAN,WPS |
Operating Condition | Temperature: 0℃~+50℃ |
Humidity: 10%~90%(non-condensing) | |
Storing Condition | Temperature: -30℃~+60℃ |
Humidity: 10%~90%(non-condensing) | |
Power Supply | DC 12V/1A |
Power Consumption | ≤6W |
Dimension | 190mm×120mm×30mm(L×W×H) |
Net Weight | 0.4kg |
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for
order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your
order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
|
|
