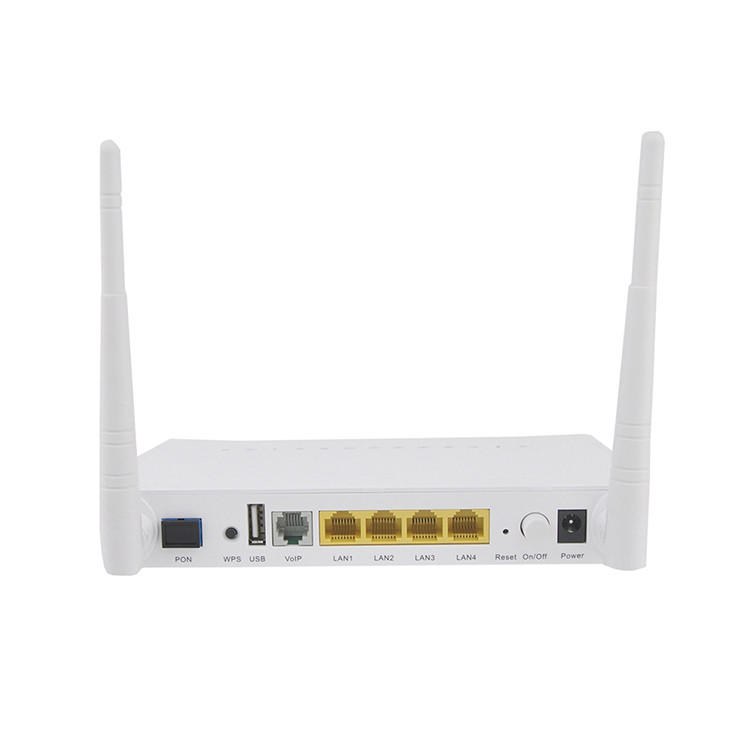

Dual Band ftth modem 4GE + AC WiFi + 1USB epon gpon onu 2.4G&5.8G wifi Antennas xpon on

Description

UT-XP6481 series is designed as HGU(Home Gateway Unit) in deferent FTTH solutions by UT-King, Thecarrier-class FTTH application provides data service access, based on mature and stable, cost-effective XPON technology. It can switchautomatically with EPON and GPON when it access to the EPON OLT or GPON OLT.XPON series adopts high reliability, easy management, configuration flexibility and good quality ofservice (QoS) guarantees to meet the technical performance of the module of China Telecom EPONCTC3,0 and GPON Standard of ITU-TG.984.X.

Features

• Support EPON and GPON, and switch mode automatically
• Support ONU auto-discovery/Link detection/remote upgrade of software
• WAN connections support Route and Bridge mode
• Route mode supports PPPoE/DHCP/ static IP
• Support WIFI Interface and multiple SSID
• Support QoS and DBA
• Support port Isolation and port vlan configuration
• Support Firewall function and IGMP snooping multicast feature
• Support LAN IP and DHCP Server configuration;
• Support Port Forwarding and Loop-Detect
• Support TR069 remote configuration and maintenance
• Support CATV interface for Video Service
• Specialized design for system breakdown prevention to maintain stable system

Parameter

Item
Interface		4x 10/100/1000BASE-T RJ45 Auto negotiation Auto MDI/MDIX
XPON	Speed	Downstream:2.488Gbps Upstream:1.244Gbps
	Connector	SC/UPC, pigtail,G.652 Single Mode Fiber
	Power level	Downstream: – Wavelength:1490nm – Sensitivity:-27dBm – Saturation:-9dBm Upstream: – Wavelength:1310nm – TX power:0.5 ~ 5dBm – RMS: 0.5nm
WIFI	Standard	ThroughPut (11n HT40): ≥140Mbps TX Power (11ac MCS9): 17+2dBm EVM (11AC MCS9) : ＜-32dB ThroughPut (11ac HT80) :≥550Mbps
	Antenna	2.4G antenna :4dBi 5G antenna :4.5dBi
VoIP	Connector	2 * RJ11
	Ringing	65V RMS ringing voltage
USB		Max 1A for each port
