| Brand Name : | UT-King |
| Model Number : | MOVA |
| Certification : | CE,ROHS,ISO9001 |
| Supply Ability : | 1000PCS/Week |
| Delivery Time : | 3-5days |

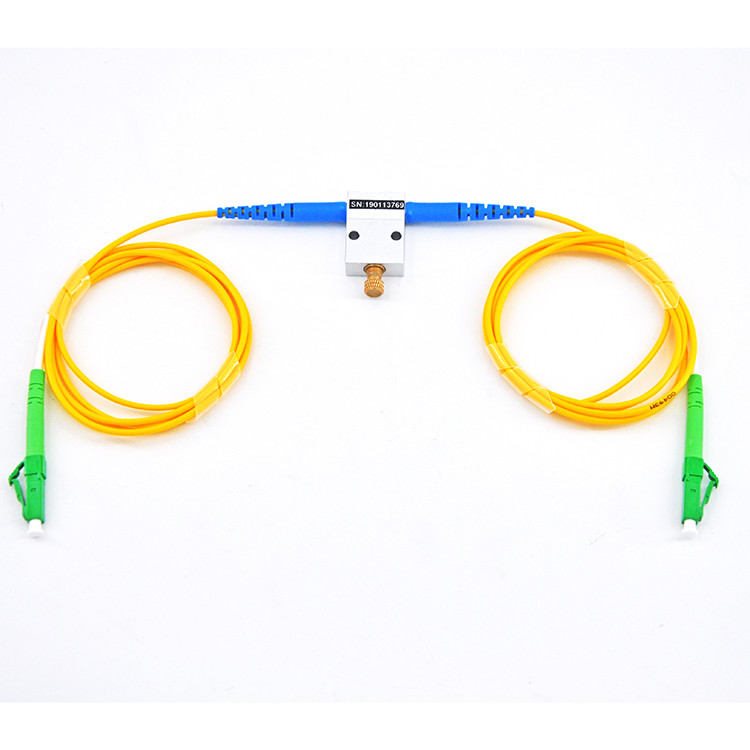

UT-King’s MVOA is an useful tool for the optical components and systems test. the Manual Variable Optical Attenuator is designed and manufactured to reduce the output optical power, get the power suitable. It is with low insertion loss, high extinction ration, high return loss and low Adjustment Precision, The Attenuator is widely applied at fiber laser ,fiber CWDM/DWDM/OADM communication system, They can be used for power control and equalization for WDMs, FTTx, CATV and Test & Measurement instruments.
| Parameter | value | ||
| Grade | - | P | A |
| Center Wavelength | nm | 980,1064, 1310, 1550, 2000 | |
| Operating Wavelength Range | nm | ±40 | |
| Max. Original loss | dB | 0.5 | 0.6 |
| Attenuation range | dB | 0.5 ~ 60 | 0.6 ~ 60 |
| Min. Return loss | dB | 50 | |
| Adjustment Precision | dB | 0.02 | |
| Max. PDL | dB | 0.2 | |
| Max. Power Handling | mW | 500 | |
| Max. Tensile Load | N | 5 | |
| Fiber type | - | SMF fiber | |
| Operating temperature | ℃ | 0 ~ +70 | |
| Operating temperature | ℃ | -40 ~ +85 | |
| Dimensions | mm | 26×18×8 | |
1. Above specifications are for device without connector.
2. For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower. The default connector key is aligned to slow axis. Power transmit through the connector less than 2W.
Order information P/N: VOA-①-②-③-④-⑤-⑥
When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better. If need any connector, we do not recommend choosing a 250μm bare fiber pigtail.
| ① | ② | ③ | ④ | ⑤ | ⑥ |
| wavelength | Grade | Fiber Type | Pigtails Diameter | Fiber Length | Connector |
98: 980nm 64:1064nm 13:1310nm 15:1550nm XX: Others | P:P Grade A:A Grade | 1: SMF-28 fiber 2: HI1060 fiber X:Others | 90:900μm 20:2.0mm 30:3.0mm XX: Others | 08:0.8m 10:1.0m XX: Others | 00:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC XX: Others |
Q. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for
order quantity.
Q. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available.
Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our
suggestions.
C.Thirdly customer confirms the samples and places deposit for
formal order.
D.Fourthly We arrange the production.
|
|
