| Brand Name : | UT-King |

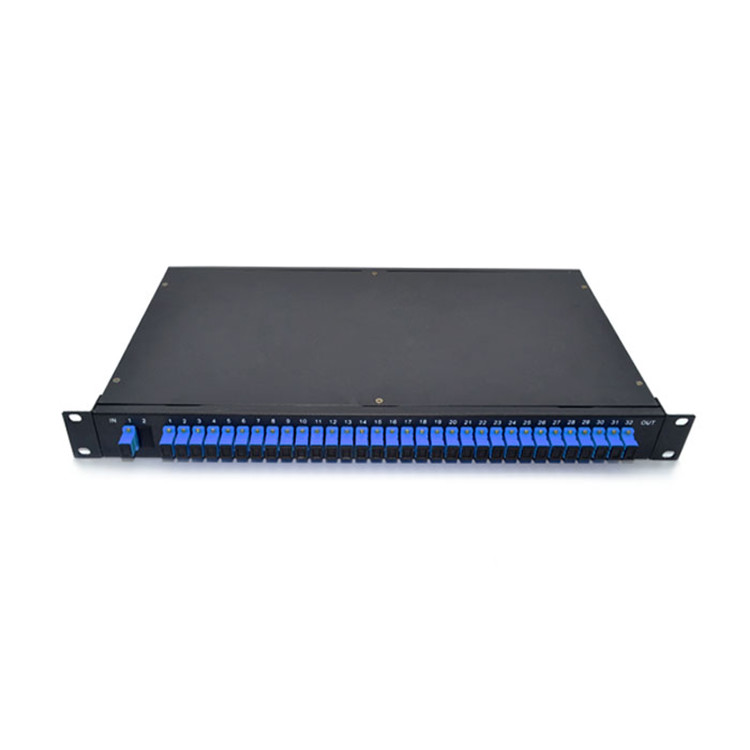

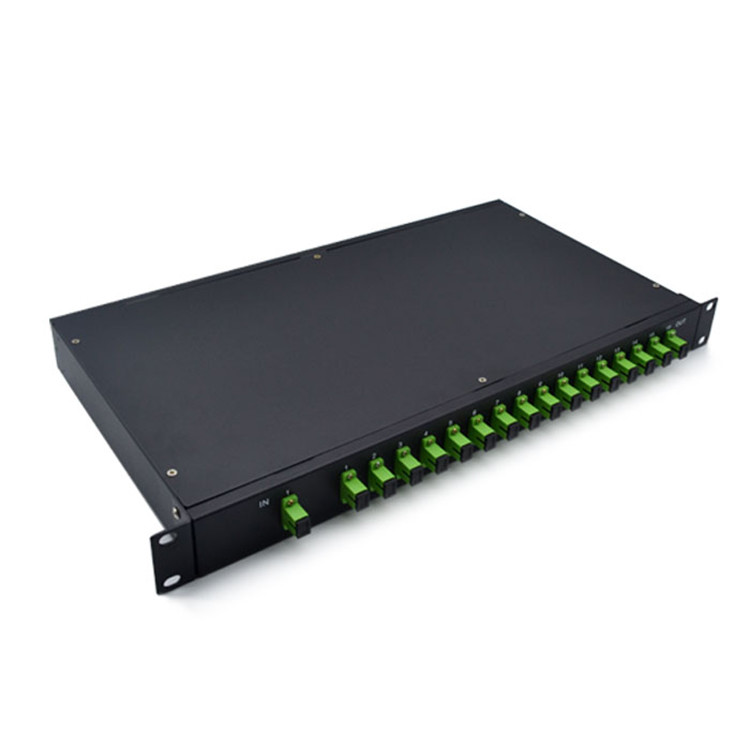

| Model Number : | PLC-RACK |
| Certification : | CE.ROSH,ISO9001 |
| Payment Terms : | T/T, Western Union,Credit Card, |
| Supply Ability : | 10000pcs/per week |
| Delivery Time : | 3-5 workdays |
UT-King's fiber splitter play an increasingly significant role in many of today’s optical network topologies. They provide capabilities that help users maximize the functionality of optical network circuits from FTTx systems to traditional optical networks. And usually they are placed in the central office or in one of the distribution points (outdoor or indoor). This article will talk about two types of optical splitters (PLC splitter and FBT splitter) and then have a comparison between them. FBT splitters vs. PLC splitters: what are the differences?
A fiber optic splitter is a passive optical device that can split or separate an incident light beam into two or more light beams. These beams may or may not have the same optical power as the original beam, based on the configuration of the splitter. By means of construction, the outputs of a optical splitter can have varying degrees of throughput, which is highly beneficial when designing optical networks, whether the optical splitter is used for network monitoring or for a loss budget in a passive optical network (PON) architecture. Generally, there are two types of fiber optic splitters, which are FBT splitters and PLC splitters.
Item | 1x2 | 1x3 | 1x4 | 1x6 | 1x8 | 1x12 | ||||||||||
Operating Wavelength(nm) | 1260-1650 | |||||||||||||||
Fiber Type | G657A1 or as customers' order | |||||||||||||||
Connector | SC/FC/LC | |||||||||||||||
Ferrule section | UPC/APC | |||||||||||||||
Insertion loss(dB) | ≤4.1 | ≤6.4 | ≤7.4 | ≤9.3 | ≤10.5 | ≤12.8 | ||||||||||
Loss uniformity(dB) | ≤0.4 | ≤0.4 | ≤0.6 | ≤1.6 | ≤0.8 | ≤1.2 | ||||||||||
Return Loss(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||||||
Polarization Dependent Loss(dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.25 | ||||||||||
Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||||||
Temperature correlation loss -40～85℃(dB) | ≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤0.5 | ||||||||||
Size(mm)(LxWxH) | 40×4×4 | 60×7×4 | ||||||||||||||
Working Temperature(℃) | -40～85 | |||||||||||||||
Storage Temperature(℃) | -40～85 | |||||||||||||||
Item | 1x16 | 1x24 | 1x32 | 1x48 | 1x64 | 1x128 | ||||||||||
Operating Wavelength(nm) | 1260-1650 | |||||||||||||||
Connector | SC/FC/LC | |||||||||||||||
Ferrule section | UPC/APC | |||||||||||||||
Fiber Type | G657A1 or as customers' order | |||||||||||||||
Insertion loss(dB) | ≤13.8 | ≤15.8 | ≤16.8 | ≤18.7 | ≤20.5 | ≤24.1 | ||||||||||
Loss uniformity(dB) | ≤1.2 | ≤1.5 | ≤1.5 | ≤2.0 | ≤2.0 | ≤2.5 | ||||||||||
Return Loss(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||||||
Polarization Dependent Loss(dB) | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.4 | ||||||||||
Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||||||
Temperature correlation loss -40～85℃(dB) | ≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤0.5 | ||||||||||
Size(mm)(LxWxH) | 60×7×4 | 60×12×6 | N/A | |||||||||||||
Working Temperature(℃) | -40～85 | |||||||||||||||
Storage Temperature(℃) | -40～85 | |||||||||||||||
Item | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 | |||||||||
Operating Wavelength(nm) | 1260-1650 | |||||||||||||||
Fiber Type | G657A1 or as customers' order | |||||||||||||||
Connector | SC/FC/LC | |||||||||||||||
Ferrule section | UPC/APC | |||||||||||||||
Insertion loss(dB) | ≤4.5 | ≤7.9 | ≤10.8 | ≤14.1 | ≤17.3 | ≤21.1 | ≤24.8 | |||||||||
Loss uniformity(dB) | ≤0.9 | ≤1.1 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.2 | ≤2.5 | |||||||||
Return Loss(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | |||||||||
Polarization Dependent Loss(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.4 | |||||||||
Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | |||||||||
Temperature correlation loss -40～85℃(dB) | ≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤0.5 | ≤0.5 | |||||||||
Size(mm)(LxWxH) | 50×4×4 | 60×7×4 | N/A | |||||||||||||
Working Temperature(℃) | -40～85 | |||||||||||||||
Storage Temperature(℃) | -40～85 | |||||||||||||||
