| Brand Name : | UT-King |
| Model Number : | PLC-C116SU |
| Certification : | CE.ROSH,ISO9001 |
| Payment Terms : | T/T, Western Union,Credit Card, |
| Supply Ability : | 10000pcs/per week |
| Delivery Time : | 3-5 workdays |

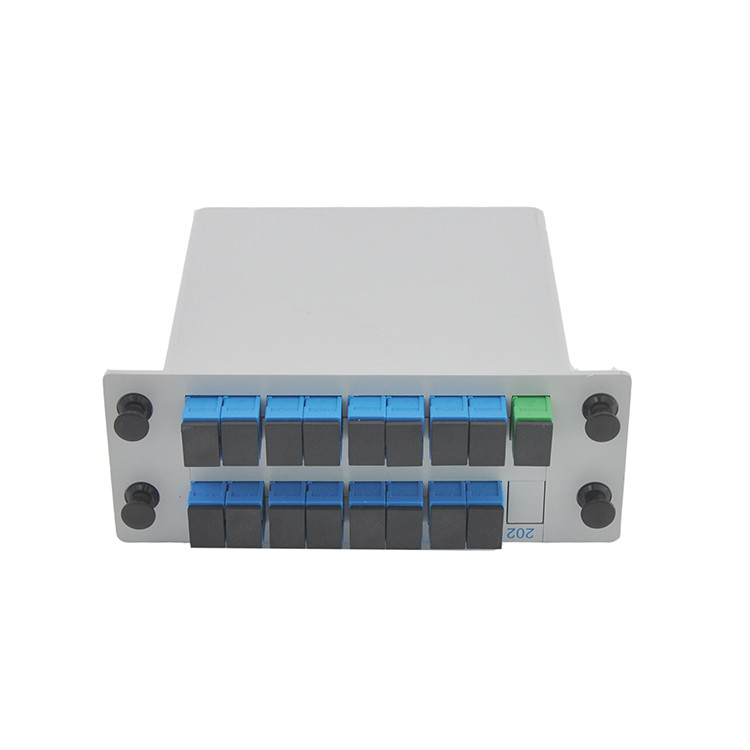

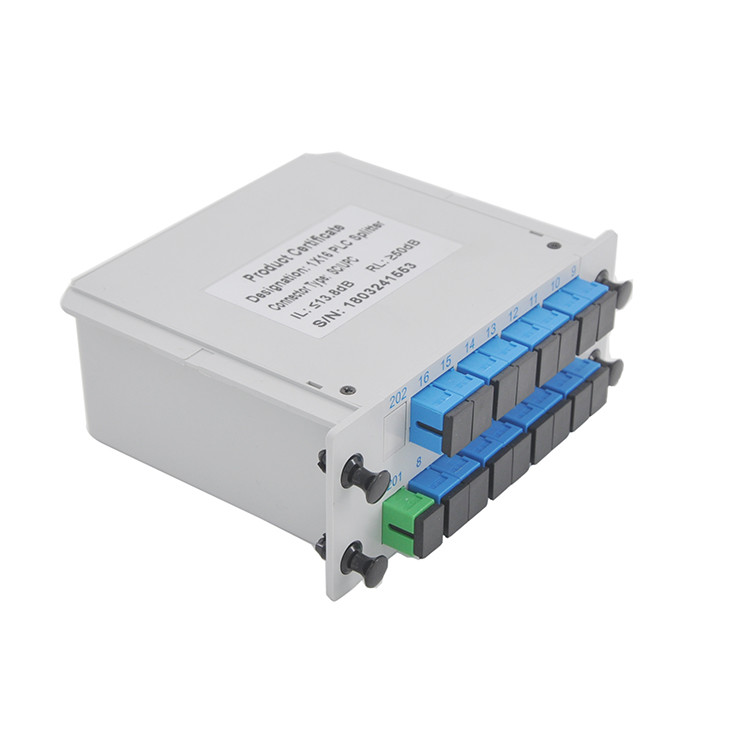

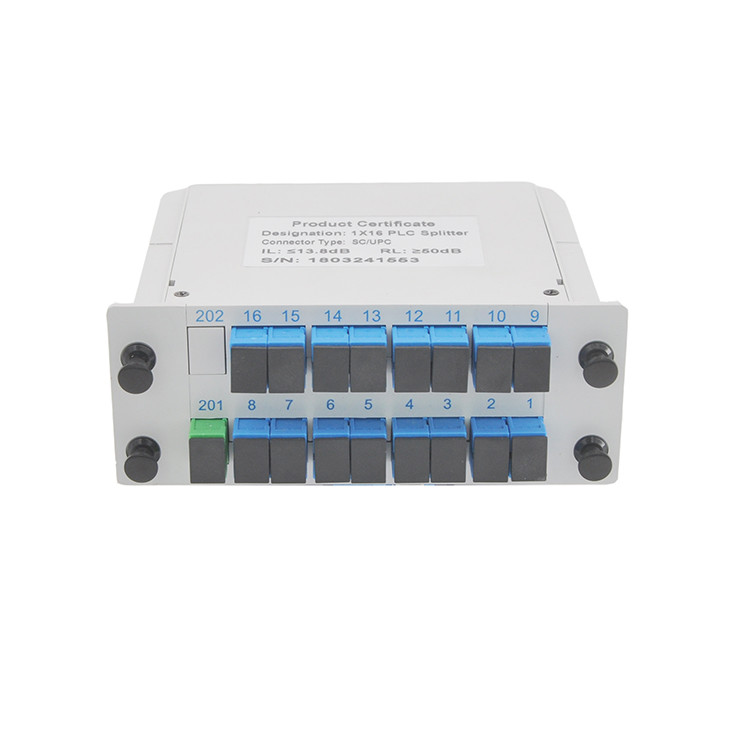

UT-King's fiber optic PLC Splitter is one of the most important passive devices in the optical fiber link. Waveguides are fabricated using lithography onto a silica glass substrate, which allows for routing specific percentages of light. As a result, PLC splitters offer accurate and even splits with minimal loss in an efficient package.
It is an optical fiber tandem device with many input and output terminals, especially applicable to a passive optical network (EPON, GPON, BPON, FTTX, FTTH etc.) to connect the MDF and the terminal equipment and to branch the optical signal.
Specification
| Item | 1x2 | 1x3 | 1x4 | 1x6 | 1x8 | 1x12 | ||||||||||
| Operating Wavelength(nm) | 1260-1650 | |||||||||||||||
| Fiber Type | G657A1 or as customers' order | |||||||||||||||
| Connector | SC/FC/LC | |||||||||||||||
| Ferrule section | UPC/APC | |||||||||||||||
| Insertion loss(dB) | ≤4.1 | ≤6.4 | ≤7.4 | ≤9.3 | ≤10.5 | ≤12.8 | ||||||||||
| Loss uniformity(dB) | ≤0.4 | ≤0.4 | ≤0.6 | ≤1.6 | ≤0.8 | ≤1.2 | ||||||||||
| Return Loss(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||||||
| Polarization Dependent Loss(dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.25 | ||||||||||
| Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||||||
| Temperature correlation loss -40～85℃(dB) | ≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤0.5 | ||||||||||
| Size(mm)(LxWxH) | 40×4×4 | 60×7×4 | ||||||||||||||
| Working Temperature(℃) | -40～85 | |||||||||||||||
| Storage Temperature(℃) | -40～85 | |||||||||||||||
| Item | 1x16 | 1x24 | 1x32 | 1x48 | 1x64 | 1x128 | ||||||||||
| Operating Wavelength(nm) | 1260-1650 | |||||||||||||||
| Connector | SC/FC/LC | |||||||||||||||
| Ferrule section | UPC/APC | |||||||||||||||
| Fiber Type | G657A1 or as customers' order | |||||||||||||||
| Insertion loss(dB) | ≤13.8 | ≤15.8 | ≤16.8 | ≤18.7 | ≤20.5 | ≤24.1 | ||||||||||
| Loss uniformity(dB) | ≤1.2 | ≤1.5 | ≤1.5 | ≤2.0 | ≤2.0 | ≤2.5 | ||||||||||
| Return Loss(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||||||
| Polarization Dependent Loss(dB) | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.4 | ||||||||||
| Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||||||
| Temperature correlation loss -40～85℃(dB) | ≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤0.5 | ||||||||||
| Size(mm)(LxWxH) | 60×7×4 | 60×12×6 | N/A | |||||||||||||
| Working Temperature(℃) | -40～85 | |||||||||||||||
| Storage Temperature(℃) | -40～85 | |||||||||||||||
| Item | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 | |||||||||
| Operating Wavelength(nm) | 1260-1650 | |||||||||||||||
| Fiber Type | G657A1 or as customers' order | |||||||||||||||
| Connector | SC/FC/LC | |||||||||||||||
| Ferrule section | UPC/APC | |||||||||||||||
| Insertion loss(dB) | ≤4.5 | ≤7.9 | ≤10.8 | ≤14.1 | ≤17.3 | ≤21.1 | ≤24.8 | |||||||||
| Loss uniformity(dB) | ≤0.9 | ≤1.1 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.2 | ≤2.5 | |||||||||
| Return Loss(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | |||||||||
| Polarization Dependent Loss(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.4 | |||||||||
| Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | |||||||||
| Temperature correlation loss -40～85℃(dB) | ≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤0.5 | ≤0.5 | |||||||||
| Size(mm)(LxWxH) | 50×4×4 | 60×7×4 | N/A | |||||||||||||
| Working Temperature(℃) | -40～85 | |||||||||||||||
| Storage Temperature(℃) | -40～85 | |||||||||||||||
|
|
