| Brand Name : | UT-King |
| Model Number : | PLC-C108SA |
| Certification : | CE.ROSH,ISO9001 |
| Payment Terms : | T/T, Western Union,Credit Card, |
| Supply Ability : | 10000pcs/per week |
| Delivery Time : | 3-5 workdays |

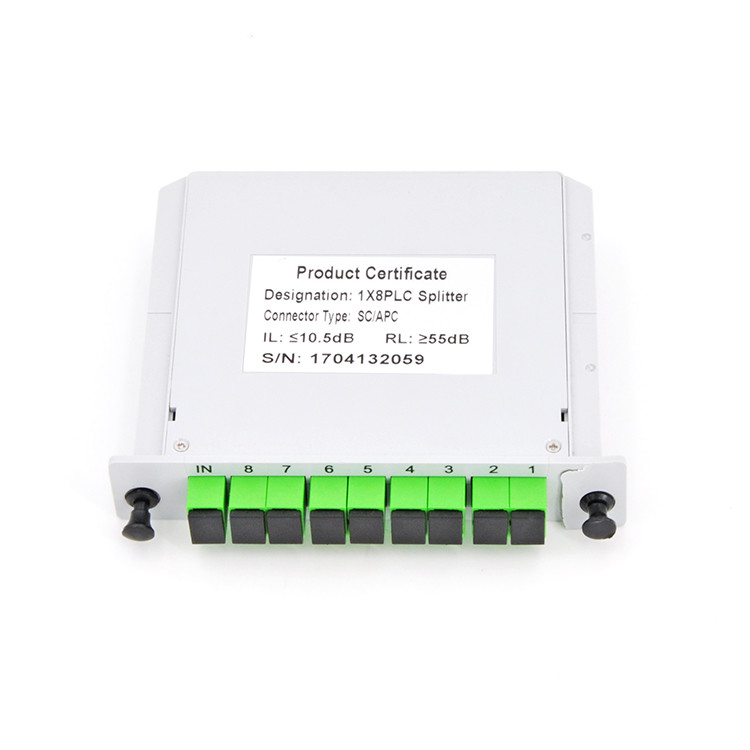

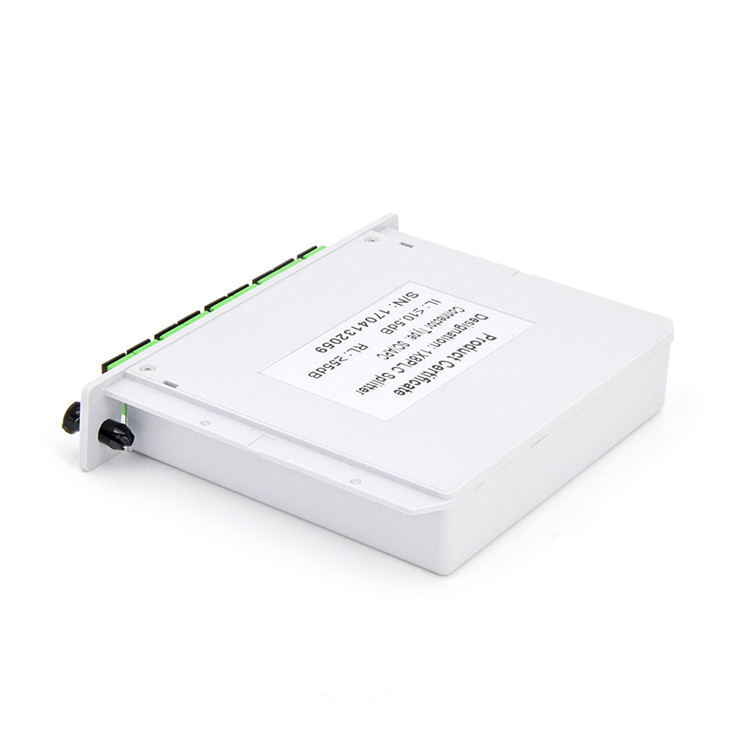

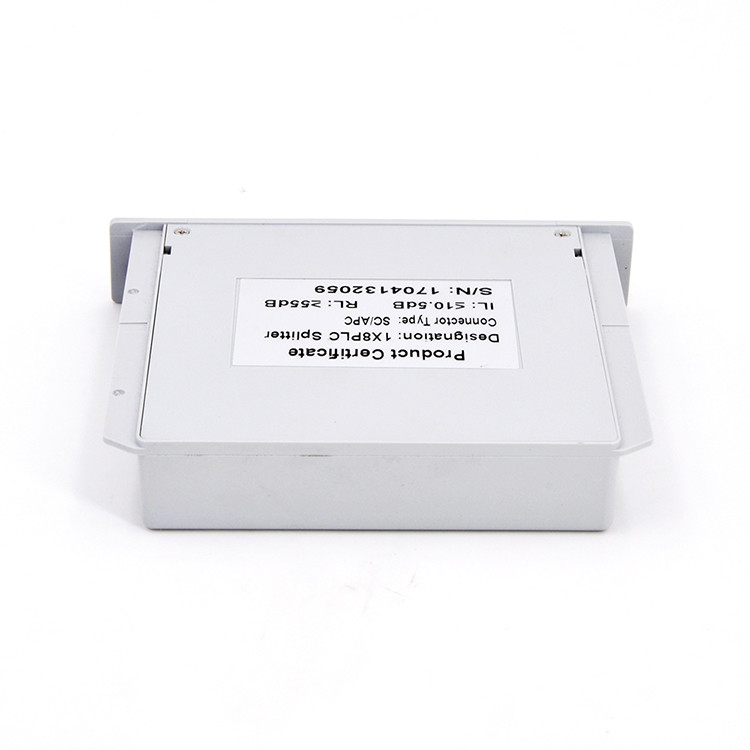

UT-King' s Planar Lightwave Circuit (PLC) Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Oxin provides whole series of 1xN splitter and 2xN splitter products that are tailored for specific applications.
ABS Type PLC splitter are most commonly used in the PON networks. They provide complete protection for inner optical components and cable, and are designed for convenient and reliable installations.
With high volume usage, the PLC splitters are mainly used for various connection and distribution products (outdoor fiber distribution boxes) or network cabinets. Ideal for EPON, GPON, FTTH/FTTX networks
PLC Splitter is a component that splits the optical light power from one route into different routes. Molex PLC Splitter offers premium factory controlled optical performance on a variety of connectors that enable fast, economical installation.
Specification
| Item | 1x2 | 1x3 | 1x4 | 1x6 | 1x8 | 1x12 | ||||||||||
| Operating Wavelength(nm) | 1260-1650 | |||||||||||||||
| Fiber Type | G657A1 or as customers' order | |||||||||||||||
| Connector | SC/FC/LC | |||||||||||||||
| Ferrule section | UPC/APC | |||||||||||||||
| Insertion loss(dB) | ≤4.1 | ≤6.4 | ≤7.4 | ≤9.3 | ≤10.5 | ≤12.8 | ||||||||||
| Loss uniformity(dB) | ≤0.4 | ≤0.4 | ≤0.6 | ≤1.6 | ≤0.8 | ≤1.2 | ||||||||||
| Return Loss(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||||||
| Polarization Dependent Loss(dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.25 | ||||||||||
| Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||||||
| Temperature correlation loss -40～85℃(dB) | ≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤0.5 | ||||||||||
| Size(mm)(LxWxH) | 40×4×4 | 60×7×4 | ||||||||||||||
| Working Temperature(℃) | -40～85 | |||||||||||||||
| Storage Temperature(℃) | -40～85 | |||||||||||||||
| Item | 1x16 | 1x24 | 1x32 | 1x48 | 1x64 | 1x128 | ||||||||||
| Operating Wavelength(nm) | 1260-1650 | |||||||||||||||
| Connector | SC/FC/LC | |||||||||||||||
| Ferrule section | UPC/APC | |||||||||||||||
| Fiber Type | G657A1 or as customers' order | |||||||||||||||
| Insertion loss(dB) | ≤13.8 | ≤15.8 | ≤16.8 | ≤18.7 | ≤20.5 | ≤24.1 | ||||||||||
| Loss uniformity(dB) | ≤1.2 | ≤1.5 | ≤1.5 | ≤2.0 | ≤2.0 | ≤2.5 | ||||||||||
| Return Loss(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||||||
| Polarization Dependent Loss(dB) | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.4 | ||||||||||
| Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||||||
| Temperature correlation loss -40～85℃(dB) | ≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤0.5 | ||||||||||
| Size(mm)(LxWxH) | 60×7×4 | 60×12×6 | N/A | |||||||||||||
| Working Temperature(℃) | -40～85 | |||||||||||||||
| Storage Temperature(℃) | -40～85 | |||||||||||||||
| Item | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 | |||||||||
| Operating Wavelength(nm) | 1260-1650 | |||||||||||||||
| Fiber Type | G657A1 or as customers' order | |||||||||||||||
| Connector | SC/FC/LC | |||||||||||||||
| Ferrule section | UPC/APC | |||||||||||||||
| Insertion loss(dB) | ≤4.5 | ≤7.9 | ≤10.8 | ≤14.1 | ≤17.3 | ≤21.1 | ≤24.8 | |||||||||
| Loss uniformity(dB) | ≤0.9 | ≤1.1 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.2 | ≤2.5 | |||||||||
| Return Loss(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | |||||||||
| Polarization Dependent Loss(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.4 | |||||||||
| Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | |||||||||
| Temperature correlation loss -40～85℃(dB) | ≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤0.5 | ≤0.5 | |||||||||
| Size(mm)(LxWxH) | 50×4×4 | 60×7×4 | N/A | |||||||||||||
| Working Temperature(℃) | -40～85 | |||||||||||||||
| Storage Temperature(℃) | -40～85 | |||||||||||||||
|
|
