| Brand Name : | UT-King |
| Model Number : | EP7004 |
| Certification : | CE,ROHS,ISO |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 10pcs/day |
| Delivery Time : | 3-5 workdays |

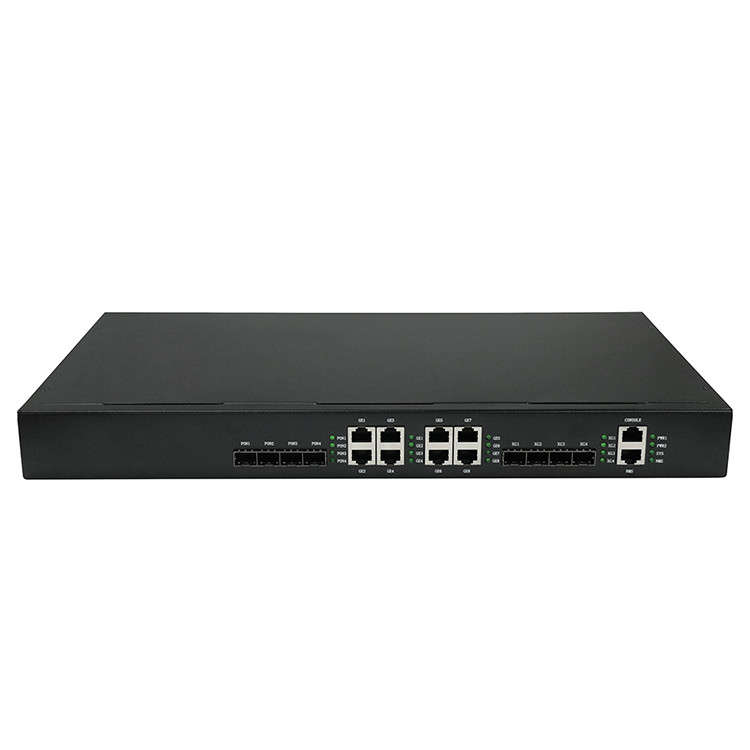

EPON OLT 4PON(UT-EP7004) ,the most effective access technology, is increasingly used in telecom broadband access, cable broadband access, FTTx, intelligent electric grid and surveillance.It is a small rack type EPON OLT. It consists of a EPON OLT and the network management card. I wors with EPON ONU series and ODN to establish a passive optic network.
Each PON port of 4 ports EPON OLT can support 64(max) terminal ONUs. It supports 10～20km transmission distance at the base of high bandwidth, and supplies full line speed L2/L3 transition capacity.
It supports maximum 256 Logical Link Identifiers (LLID) and Dynamic Bandwidth Allocation (DBA). It is adapt to small fiber access network, such as towns, villages, which don’t have large quantity users. 4 Ports EPON system greatly lowers the cost to establish network and assure high bandwidth. It is also adapt to FTTH/FTTB/FTTO projects, to implement fiber to the home, such as IP phone, Ethernet data and IPTV services access.
| Item | EP7004 |
| Service Port | 4*PON port,4*1.25G SFP & 8*10/100/1000M RJ45 for uplink |
| Operating wavelength | 1310 (RX)/1490(TX) 1.25G Upstream /1.25G Downstream |
| Capacity | 1:64(max) |
| Redundancy Design | Support AC input or DC input |
| Power Supply | AC: input 100～240V 50/60Hz; DC: input 36V～75V; |
| Power Consumption | ≤40W |
| Dimensions (Width x Height x Depth) | 440mm×44mm×260mm |
| Weight (Full-Loaded) | ≤4.6kg |
| Environmental Requirements | Working temperature: -10°C～55°C Storage temperature: -40°C～70°C Relative humidity: 10%～90%, non-condensing |
| Item | |
EPON traits | Support IEEE802.3ah Support DBA with minimum1Kbps granularity adjustable Support 1Gbps up link and down link symmetrical bandwidth Support AES-128 encryption to each Logical Link Identifier Support powerful OAM function, implement telnet management, maintenance and upgrade Support auto discovery and auto register of ONU (real-time operation) |
| Network management | Support GUI management based on SNMP Support Local serial interface management and local serial interface management and Telnet GUI management based on CLI |
| Other functions | Support IGMPv1/v2 protocol report, query and leave message mouse Support DHCP Snooping Support Ipv4 address learning based at DHCP Snooping Support ARP Snooping, QoS etc |
|
|
