    AC Dual Band Gpon Ont Fiber Optic XPON 1POTS 4GE 2 USB

    Ask Lasest Price
    Brand Name : Huawei
    Model Number : HS8546V2
    Certification : CE,ROHS,ISO9001
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    AC Dual Band Gpon Ont Fiber Optic XPON 1POTS 4GE 2 USB

    AC Dual-Band Wifi Huawei HS8546V2 ONU EPON GPON XPON 4 Gigabit Ethernet Port Gpon Ont


    Description

    Huawei HS8546V2 FTTH is a device with 4 Gigabit Ethernet ports, 1 telephone port, 1 class B + GPON port, 2 USB ports and also equipped with a WPS button and a built-in 8G SD memory card. Huawei HS8546V2 FTTH can transmit a wireless network. it is possible to simultaneously transmit in two 2.4 and 5G bands. It has been equipped with security functions such as a firewall and filtering based on MAC / UP / URL addresses.


    Features

    • Huawei GPON ONT HS8546V Optical Network Terminal
    • GPON ONT, 4*GE+1*POTS+2*USB, with 2.4G/5G WiFi
    • Support 802.11ac
    • Support IPv4&IPv6
    • Connector type SC/UPC
    • Can be configured by OLT or Web or NMS
    • Routing function supported
    • China Mobile Logo


    Specification

    ModelHS8546V2
    PON TypeGPON
    Optical interfaceSC/UPC
    UNI1POTS+4GE+2USB+2.4G&5G Wi-Fi
    WiFi standard2.4GHz: 2 x 2 MIMO 802.11b/g/n
    5GHz: 2 x 3 MIMO 802.11a/n/ac
    Antenna gain2dBi
    Dimensions(Width×Depth×Height)265mm x 176mm x 82mm
    Box Dimensions(Width×Depth×Height)290mm x 230mm x 95mm
    Box Weight(kg)0.85kg
    Power supplyPower supply: 11-14V DC, 1A
    Input power: 100-240V AC, 50/60HZ
    Operating temperature and operating humidity0℃ to 40℃
    5% to 95%, non-condensing
    CoolingPassive cooling
    Maximum number of MAC addresses learned1024
    L2 forwarding capability200 Mbit/s downstream (with any length packets)
    200 Mbit/s upstream (with any length packets)
    IPv4 L3 forwarding capability2Gbit/s with any length packets in downstream direction
    1Gbit/s with any length packets in upstream direction
    IPv6 L3 forwarding capability2Gbit/s with any length packets in downstream direction
    1Gbit/s with any length packets in upstream direction
    Configuration methodNMS, Web, or TR069
    Voice protocolSIP, H.248

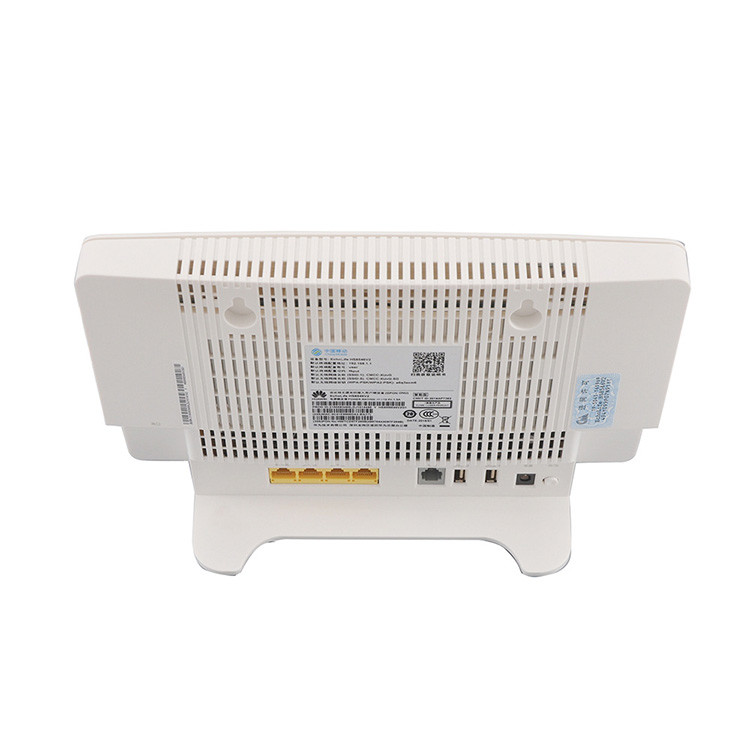

    Detailed Images

    AC Dual Band Gpon Ont Fiber Optic XPON 1POTS 4GE 2 USBAC Dual Band Gpon Ont Fiber Optic XPON 1POTS 4GE 2 USBAC Dual Band Gpon Ont Fiber Optic XPON 1POTS 4GE 2 USBAC Dual Band Gpon Ont Fiber Optic XPON 1POTS 4GE 2 USB

    FAQ

    Q: What is the difference between Huawei HS8546V2 and Huawei HG8546M (GE)?
    A: The main difference is Huawei HS8546V2 comes with 2.4G/5G WiFi, Huawei HG8546M (GE) only 2.4G WiFi. Huawei HS8546V2 comes with 4GE ports, Huawei H8546M (GE) with 1GE port.


    Q: Does Huawei HS8546V2 comes with Europe type adapter?
    A: No, it comes with Huawei original Chinese type adapter, if need other specification, please contact with Thunder-linkcom sales team.


    Q: Does Huawei HS8546V2 login page is English?
    A: Yes, it is English version.


    Q: Does Huawei HS8546V2 support routing function?
    A: Yes.


    Q: Does Huawei HS8546V2 support battery back?
    A: No.


    Q: How to Restore Factory Settings for Huawei HS8546V2?
    A: Use either of the following methods to restore factory settings for Huawei HS8546V2:
    1. Choose System Tools > Restore Default Configuration from the main menu on the web page and click Restore Default Configuration.
    2. Hold down the RESET button for a long period of time (longer than 10s) to restart the Huawei HS8546V2 with factory settings.


    Q: How to configure the Wi-Fi service on Huawei HS8546V2?
    A: Configure the Wi-Fi service through web pages or TR069 servers for Huawei HS8546V2 that supports Wi-Fi. For details, see the user manual of Huawei HS8546V2 device.
