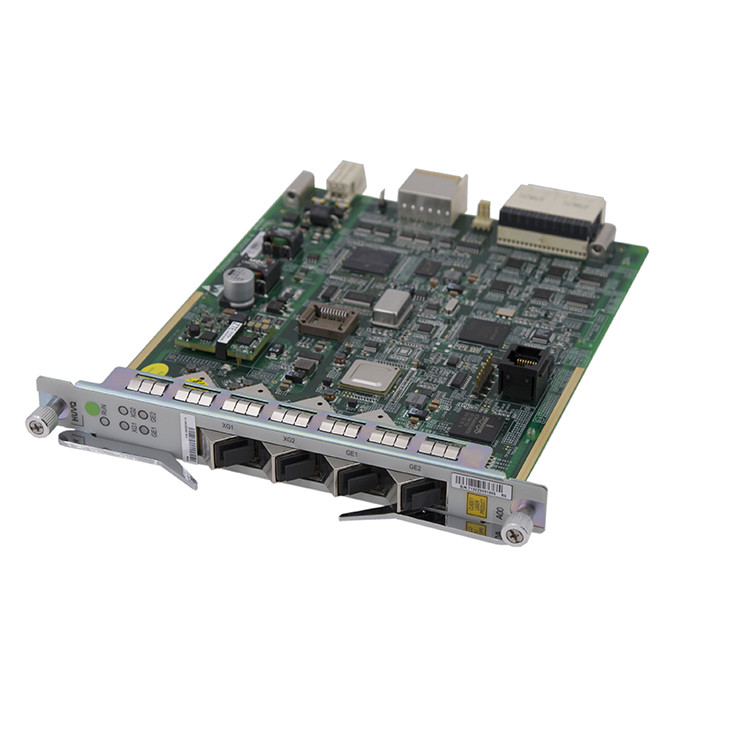

ZTE HUVQ Uplink Card 4 Ports 2 10GE Port 2 GE Port Optical Interface Ethernet Uplink Board C300 OLT.

Description

The ZXA10 C300 supports the following 10GE/GE Ethernet uplink cards
HUTQ: 2-port 10GE and 2-port GE optical interface Ethernet uplink card
HUVQ: 2-port 10GE and 2-port GE optical interface Ethernet uplink card, supports SynE and IEEE 1588 TC function.

Features

Large capacity, high density, high performance, and flatness
It meets the requirements for network evolution and deployment of “large capacity and few offices”, and meets the requirements of flat network, high-density interface boards, and provides special solutions for large splitting ratio and long-distance application scenarios.
Seven-mode access to ensure continuous network evolution
GPON / EPON, 10G PON (XG-PON1 / 10G-EPON / XGS-PON), and NG-PON2 (TWDM-PON) three generations of PON access technologies are integrated on the same platform while supporting P2P. On-demand deployment and flexible access ensure continuous network evolution.
Adapt to network convergence and full-service carrying
It adapts to TDM and mobile backhaul bearers, complete VLAN / multicast / QoS service capabilities and excellent service performance, which meets the network construction requirements under the background of optical advancement, copper withdrawal,

Parameter

Indicator	Status	Description
RUN	LED is OFF.	The card is powered off.
	Green LED is ON.	The card self-checking completes but fails to receive data from the switching and control card or NM.
	Green LED flashes irregularly.	The card is downloading data from the switching and control card or the network management server.
	Green LED flashes slowly (0.5 Hz).	The card runs properly.
	Red LED is ON.	Card hardware failure
	Red LED flashes slowly (0.5 Hz).	The card is plugged in the wrong slot.
	Yellow LED flashes slowly (0.5 Hz).	The software version of the card does not match that of the switching and control card. Auto-update is not configured on the card.
XG1/XG2/G- E1/GE2	Green LED is OFF.	The optical module is not connected or optical link failure.
	Green LED is ON.	The optical interface is connected (LINK).
	Green LED flashes.	The optical interface is sending and receiving the data (ACTIVE).

Detailed Images

FAQ

1, Q: What is HUVQ and HUTQ difference?

A: Both HUTQ and HUVQ are the ZTE 2-port 10GE and 2-port GE optical interface Ethernet uplink card but only HUVQ can support SynE and IEEE 1588 TC function.

2, Q: What are the mapping relations between Uplink Card and Switching and Control Card for ZXA10 C300/C350/C320?

A:

Card Type	Card Name	Switching and Control Card					Slot
		SCXN	SCTM	SCXM	SCXL	SMXA
Ethernet uplink card	XUTQ	Χ	√	Χ	√	Χ	ZXA10 C300/C350 uplink link card slot
	XUVQ	Χ	√	Χ	√	Χ	ZXA10 C300/C350 uplink link card slot
	GUFQ	√	√	√	√	Χ	ZXA10 C300/C350 uplink link card slot
	GUSQ	√	√	√	√	Χ	ZXA10 C300/C350 uplink link card slot
	HUTQ	√	√	√	√	Χ	ZXA10 C300/C350 uplink link card slot
	HUVQ	√	√	√	√	Χ	ZXA10 C300/C350 uplink link card slot
	UCDC/1	Χ	Χ	Χ	Χ	√	ZXA10 C320 SMXA daughter card
	UCDC/3	Χ	Χ	Χ	Χ	√	ZXA10 C320 SMXA daughter card
	UCDC/5	Χ	Χ	Χ	Χ	√	ZXA10 C320 SMXA daughter card

3, Q: What are the ZXA10 C300 Uplink Interfaces included?

A:

Interface Type	Interface Card	Interface Quantity
GE optical interface	GUFQ	4
	GUSQ	4
	HUVQ	2
	HUTQ	2
10GE optical interface	XUTQ	4
	XUVQ	4
	HUVQ	2
	HUTQ	2

4, Q: Does HUVQ support Ethernet user access and cascading?

A: NO, it does not. It supports SynE and IEEE 1588 TC function.
