    GTGO GPON OLT Sfp Optical Transceiver Fiber Channel FCC

    Ask Lasest Price
    Brand Name : ZTE
    Model Number : C+
    Certification : CE,ROHS,ISO9001
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    GTGO GPON OLT Sfp Optical Transceiver Fiber Channel FCC

    ZTE SFP GPON OLT C+ GPON OLT C+ SFP Optical Transceiver On GPON Board GTGH GTGO GFGH GFGM GFGL GFGN GFGO


    Description

    ZTE SFP GPON OLT C+ optical transceiver is designed to work together with GPON-type optical line Terminal such as ZTE C300 C320. ZTE SFP GPON OLT C+ is equipped with a high-quality emitter, and allows to work longer without losing radiation power for a long time and while not allowing the network to sink. ZTE SFP GPON OLT C+ gives out no more than 128 client ONU terminals, while EPON technology allows only 64 client terminals to pass through.


    Features

    • Support ONU power saving management defined in G.987.3
    • 1024 T-CONTs per PON port, 4096 GEM ports per PON port
    • 16 GPON ports per card, up to 1:128 split ratio
    • High TM Performance:
    • Newly developed lower power GPON MAC chip
    • Reduce 30% power consumption on industry average
    • GPON OLT C+, 60km, TX 1490nm 2.488Gbps, RX 1310nm
    • 1.244Gbps, SFP form-factor, SC/UPC Receptacle
    • Can be used in any brand GPON OLT Pon ports

    Specification

    BrandZTE
    ModelSFP C+
    Rate2.5G
    UseGPON OLT
    TypeFiber to the Home, Passive Optical Network
    StyleWired (optical)
    ApplicationEthernet, Sonet / Sdh, Fiber Channel
    Transmission distance20km
    PackageSFP
    Transmission methodsingle-mode fiber
    CertificationCE, FCC, RoHS
    Wavelength1310nm/1550nm
    Interface typeSC

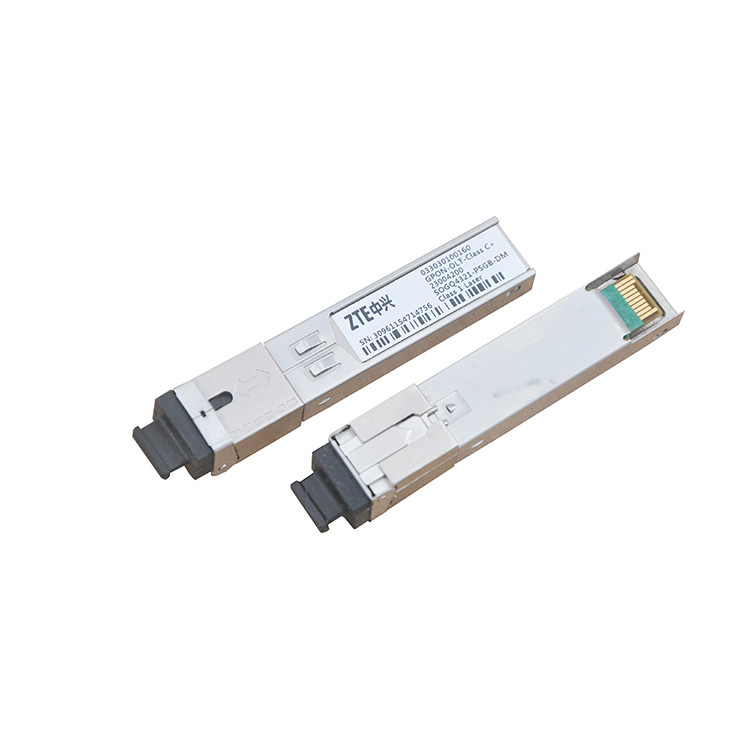

    Detailed Images

    GTGO GPON OLT Sfp Optical Transceiver Fiber Channel FCCGTGO GPON OLT Sfp Optical Transceiver Fiber Channel FCCGTGO GPON OLT Sfp Optical Transceiver Fiber Channel FCC

    FAQ

    Q: What’s the difference between ZTE GPON OLT SFP Module C+ and C++ ?
    A:

    C+ ModuleC++ Module
    TypeOne-fiber bi-directional optical module, class C+One-fiber bi-directional optical module, class C++
    Operating WavelengthTx: 1490 nmTx: 1490 nm
    Rx: 1310 nmRx: 1310 nm
    Encapsulation TypeSFPSFP
    Port RateTx:2.49Gbit/sTx:2.488Gb/s
    Rx:1.24Gbit/sRx:1.244Gb/s
    Minimum Output Optical Power3.00 dBm6.00 dBm
    Maximum Output Optical Power7.00 dBm10.00 dBm
    Maximum Receiver Sensitivity-32.00 dBm-35.00 dBm
    Optical Connector TypeSC/PCSC/UPC
    Optical Fiber TypeSingle-modeSingle-mode
    Reach20.00km20.00km
    Overload Optical Power-12.0 dBm-15.0 dBm
    Extinction Ratio8.2 dB8.2 dB
