    ZTE F660 V8.0 GPON ONU 1GE + 3FE + 1POTS + WIFI + 1USB Ports English Firmware

    Ask Lasest Price
    Model Number : F660 V8.0
    Price : USD 13-15 per pieces
    Payment Terms : T/T, Western Union
    Supply Ability : 1000pcs one week
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    ZTE F660 V8.0 GPON ONU 1GE + 3FE + 1POTS + WIFI + 1USB Ports English Firmware

    The best ZTE ONT 1GE + 3FE + 1POTS + WIFI + 1USB ports English Firmware F660 V8.0 GPON ONU

    FTTH Product Overview

    ZTE F660 V8.0 is a GPON Optical Network Terminal designed for HGU (Home Gateway Unit) used in FTTH scenario, which supports L3 function to help subscriber construct intelligent home network.ZTE F660 provides an GPON interface to connect OLT with an ODN. It offers a new choice for operators to deliver FTTH access.

    Product Feature:

    * Ultra-wide: one deployment, continuous upgrade of network capacity
    Each PON port of the POL network has a bandwidth of up to 10G. When there is a higher bandwidth requirement, the optical fiber does not need to be replaced, only the equipment or optical modules at both ends need to be replaced, simplifying the upgrade steps and saving upgrade costs.

    * Simplified: energy saving and land saving, simple operation and maintenance
    The POL solution can reduce the computer room by about 80% and can achieve energy savings of up to 60%.

    * The POL network has a simple hierarchy, which is convenient for maintenance and management, reduces failure points, and improves network reliability. Network operation and maintenance expenses can be reduced by more than 60%.

    * Convergence: One optical fiber carries all services
    A set of POL network can provide 1000M Ethernet port, POTS, CATV, Wi-Fi, RS232/485 serial port, PoE port, time synchronization interface, etc. There is no need to establish multiple sets of networks to carry multiple services.

    * Security: Provide multiple security protection mechanisms
    The POL network effectively avoids electromagnetic interference, electromagnetic leakage and other problems, and supports AES128 encryption to ensure the safety of data optical fiber transmission.

    * POL equipment supports MAC binding, 802.1x authentication, user isolation, etc., broadcast suppression, and anti-DOS attacks effectively prevent illegal user access and other user attacks.

    FTTH Datasheet

    Brand
    ZTE
    Model
    F660V8.0
    Optical port
    1 x GPON interface
    Transmission Distance
    0-20KM
    Transmit rate
    2.488Gbps downstream; 1.244Gbps upstream
    User-Network Interface
    1GE +3FE port
    1 x Wi-Fi interface
    1 x USB host interface
    1 x POTS interfaces
    Wavelength
    Receiving: 1480~1500 nm Transmitting: 1290~1330 nm
    Receiving Sensitivity
    -28dBm
    Transmitting Optical Power
    0.5~5dBm
    Power consumption
    <10W
    Dimensions
    220mm(W) x 44mm(H) x 160mm(D)
    Working temperature:
    0oC ~ 40oC
    Working humidity
    5% ~ 95%
    Weight
    380G
    Power supply
    12V DC

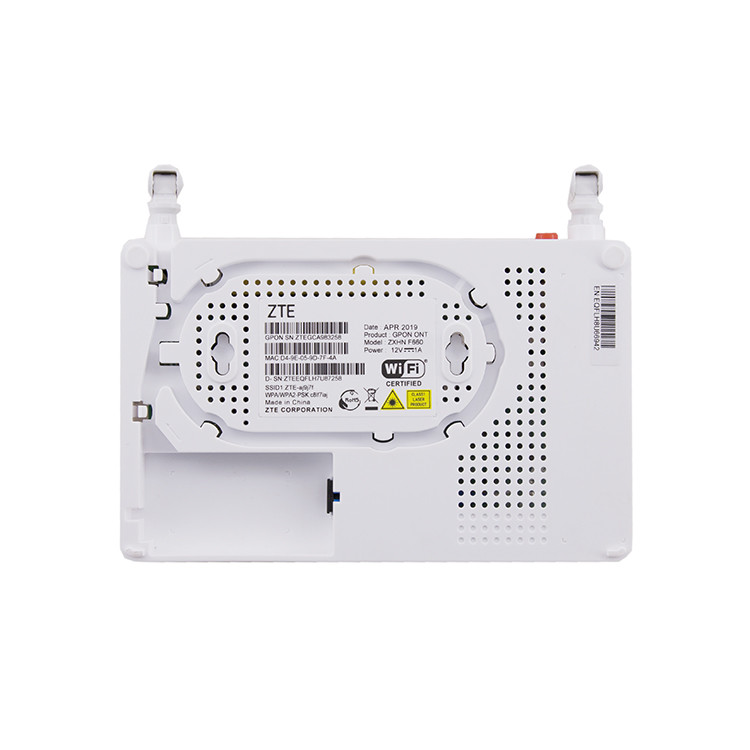

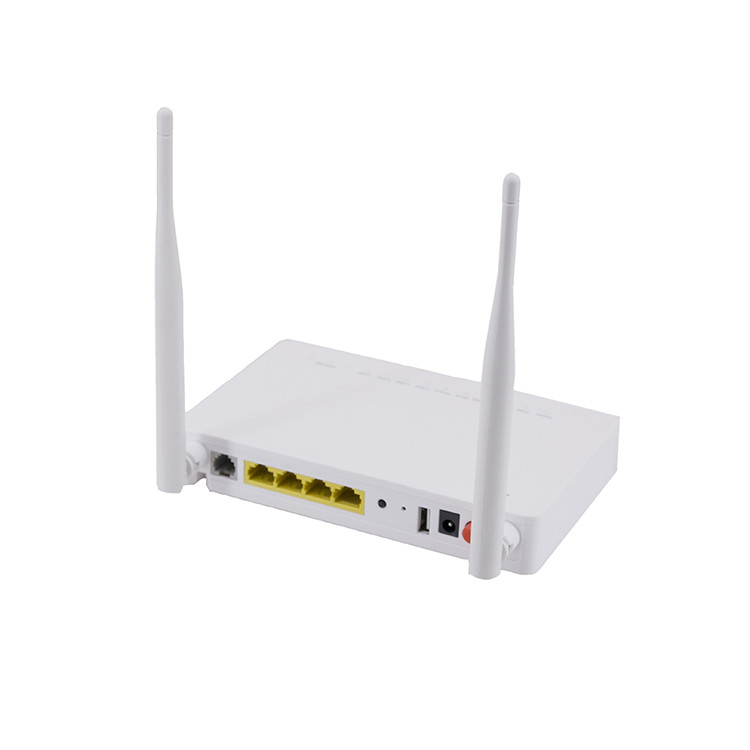

    Detail image

    ZTE F660 V8.0 GPON ONU 1GE + 3FE + 1POTS + WIFI + 1USB Ports English FirmwareZTE F660 V8.0 GPON ONU 1GE + 3FE + 1POTS + WIFI + 1USB Ports English FirmwareZTE F660 V8.0 GPON ONU 1GE + 3FE + 1POTS + WIFI + 1USB Ports English Firmware
