5DB Antenna HuaWei GPON ONU HG8546M 1GE + 3FE + 1POTS + 1USB + 2.4G WiFi

Shenzhen UT-King Technology Co., Ltd.
Contact Now
    Buy cheap 5DB Antenna HuaWei GPON ONU HG8546M 1GE + 3FE + 1POTS + 1USB + 2.4G WiFi from wholesalers

    Buy cheap 5DB Antenna HuaWei GPON ONU HG8546M 1GE + 3FE + 1POTS + 1USB + 2.4G WiFi from wholesalers
    • Buy cheap 5DB Antenna HuaWei GPON ONU HG8546M 1GE + 3FE + 1POTS + 1USB + 2.4G WiFi from wholesalers
    • Buy cheap 5DB Antenna HuaWei GPON ONU HG8546M 1GE + 3FE + 1POTS + 1USB + 2.4G WiFi from wholesalers
    • Buy cheap 5DB Antenna HuaWei GPON ONU HG8546M 1GE + 3FE + 1POTS + 1USB + 2.4G WiFi from wholesalers
    • Buy cheap 5DB Antenna HuaWei GPON ONU HG8546M 1GE + 3FE + 1POTS + 1USB + 2.4G WiFi from wholesalers

    5DB Antenna HuaWei GPON ONU HG8546M 1GE + 3FE + 1POTS + 1USB + 2.4G WiFi

    Ask Lasest Price
    Model Number : HG8546M
    Price : USD 16-19 per pieces
    Payment Terms : T/T, Western Union
    Supply Ability : 1000pcs one week
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    5DB Antenna HuaWei GPON ONU HG8546M 1GE + 3FE + 1POTS + 1USB + 2.4G WiFi

    Hua Wei Brand ONT 1GE+3FE+1POTS+1USB+2.4G WiFi HG8546M 5DB Antenna GPON ONU

    Huawei Brand ONT 1GE+3FE+1POTS+1USB+2.4G WiFi HG8546M 5DB Antenna GPON ONU

    FTTH Product Overview

    Huawei HG8546M FTTH is an Optical Terminal Unit with 1 GE+3 FE+1 POTS+1 USB+2.4G WiFi. This is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. It can support pure data, Data +Voice, Data+ Voice+ WIFI and other service accessing type. HG8546M ONT supports standard OMCI, can provide up to 1.25Gbps uplink and 2.5Gbps downlink high-speed transfer rate. It can fully meet ISPs FTTBFTTHFTTO equipment needs The high-performance forwarding capability effectively guarantees the service experience of voice, data, and high-definition video.

    Product Feature
    * Class B+
    * Receiver sensitivity: -27 dBm
    * Overload optical power: -8 dBm
    * Wavelengths: US 1310 nm, DS 1490 nm
    * Wavelength blocking filter (WBF) of G.984.5
    * Flexible mapping between GEM Port and TCONT
    * consistent with the SN or password authentication defined in G.984.3
    * Bi-directional FEC
    * SR-DBA and NSR-DBA
    * Type B (single-homing & dual-homing)
    * Ethernet port-based VLAN tags and tag removal
    * 1:1 VLAN, N:1 VLAN, or VLAN transparent
    * QinQ VLAN
    * Limit on the number of learned MAC addresses
    * MAC address learning
    * GE: Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
    * FE: Auto-adaptive 10 Mbit/s, 100 Mbit/s
    * 711A/μ, G.729a/b and G.722

    FTTH Datasheet

    Brand
    Huawei
    Model
    HG8546M
    Power supply
    12V,1.5A
    Power consumption (full loaded)
    ≤15W
    Outline dimensions (mm) (W*D*H)
    240*160*35mm
    Weight (in maximum configuration)
    ≤0.5kg
    WIFI
    Antenna 2×2, 5dBi external antenna
    EIRP Max 25dBm
    VoIP
    REN Max 5REN
    Connector 1x RJ11
    Ringing 65V RMS ringing voltage
    USB
    Max 1A for each port
    Environmental requirements
    Working temperature:0ºC~50ºC
    Storage temperature:-40ºC~70ºC
    Working humidity:5%~90% Storage temperature:5%~95% no condensing
    Ethernet
    Standard;IEEE802.3 IEEE802.3au IEEE802.3x
    Interface;1x 10/100/1000BASE-T+310/100Base-T RJ45
    Auto negotiation
    Auto MDI/MDIX

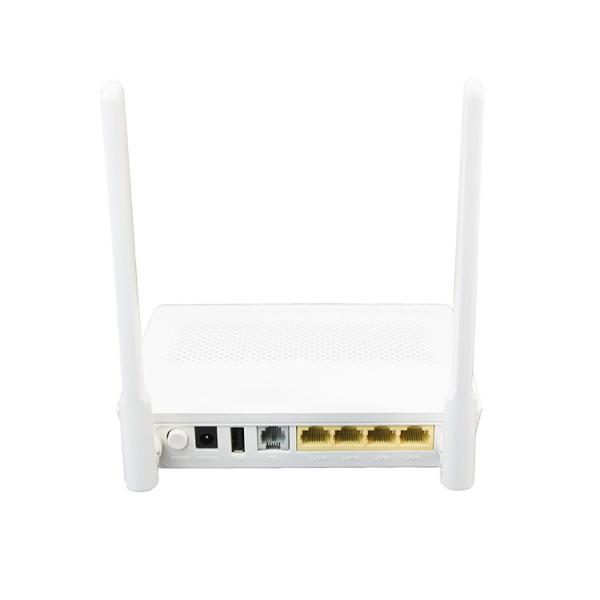

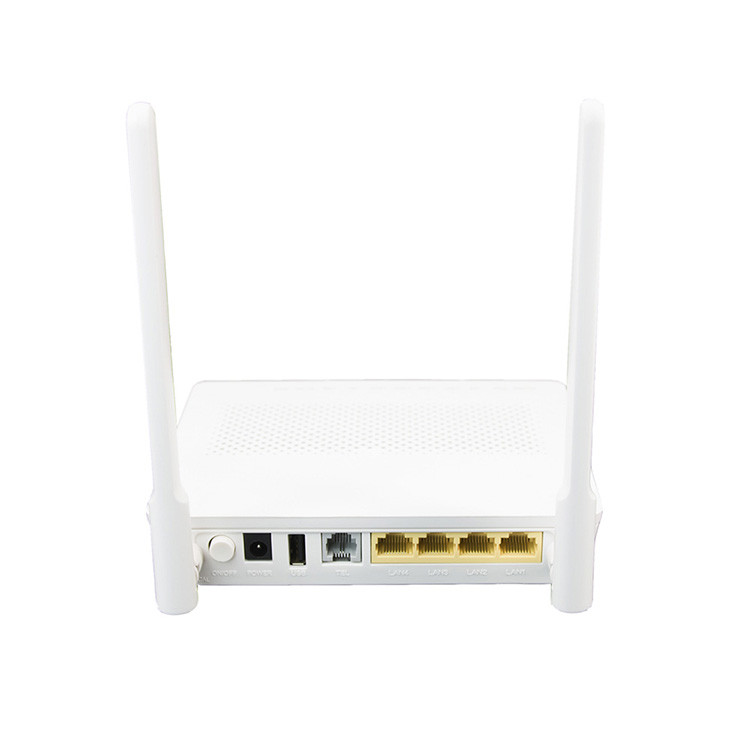

    Detail image

    5DB Antenna HuaWei GPON ONU HG8546M 1GE + 3FE + 1POTS + 1USB + 2.4G WiFi5DB Antenna HuaWei GPON ONU HG8546M 1GE + 3FE + 1POTS + 1USB + 2.4G WiFi
