    UT-King XP6422 Passive XPON ONT With 1GE 3FE 1POTS 1WIFI

    Ask Lasest Price
    Brand Name : UT-King
    Model Number : XP6422
    Price : USD 14-18 per pieces
    Payment Terms : T/T, Western Union
    Supply Ability : 1000pcs one week
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    UT-King XP6422 Passive XPON ONT With 1GE 3FE 1POTS 1WIFI

    2022 UT-King New Model Passive XP6422 ONT with 1GE+3FE+1POTS+1WIFI XPON ONU

    XP6422 is designed and manufactured for the next-generation Passive Optical Network (XPON) terminal, ideal for Fiber to The Home solution. The box is based on the mature GPON&EPON technology, which has high ratio of performance to price, and the technology of 802.11n WiFi (2T2R), Layer 2&3 and high quality VoIP as well. It is highly reliable and easy to maintain, with guaranteed QOS for different service.

    Feature

    ► Complies with ITU-T G.984.X and IEEE802.3ah, provides comprehensive GPON and EPON network compatibility
    ► Downstream rates of up to 2.488Gbps for GPON mode, 1.244Gbps for EPON mode , and upstream rates up to 1.244Gbps
    ► Fiber access and gigabit port provide incredibly fast transfer speeds
    ► Supports802.11AC
    ► Supports OMCI (ONT Management Control Interface) and OAM remote management
    Item
    Description
    XPON Standards
    ITU-T G.984.x and IEEE802.3ah
    Chipset
    ZTE,ZAX279127
    Interface
    1 SC/UPC Port or 1 SC/APC Port
    1 10/100/1000Mbps RJ45 Ports
    3 10/100Mbps RJ45 Ports
    1 POTS Port
    WIFI (2.4G)
    Data Rates & Wavelength
    Upstream:1.244Gbps, 1310nm
    Downstream:2.488Gbps for GPON mode and 1.244Gbps for EPON mode, 1490nm
    RX sensitivity
    < -28dBm @ 1490nm
    Distance
    0~ 20Km Max
    LAN interface
    1*10/100/1000Mbps
    3*10/100Mbps
    Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors
    WLAN
    Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R
    two internal antenna,or external antenna(optional)
    POTS interface
    1FXS, RJ11 connectors
    External Power Supply
    DC 12V/1A
    Dimensions (Length * Width * Height)
    180mm×130mm×50mm
    Weight (Full-Loaded)
    ≤0.4kg

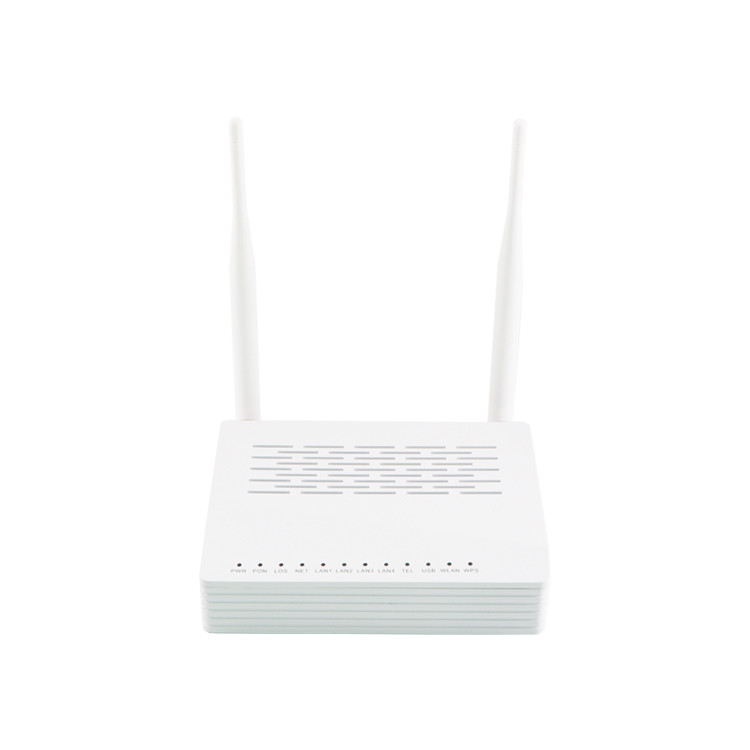

    Detail image

    UT-King XP6422 Passive XPON ONT With 1GE 3FE 1POTS 1WIFIUT-King XP6422 Passive XPON ONT With 1GE 3FE 1POTS 1WIFI
    UT-King XP6422 Passive XPON ONT With 1GE 3FE 1POTS 1WIFI
