| Brand Name : | UT-King |
| Model Number : | XP6243 |
| Certification : | RoHS, CE, ISO9001 |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 10000pcs per week |
| Delivery Time : | 5-10 days |
Advantage Price XPON ONU 1GE+1FE+CATV+WIFI for TX 1310nm, RX 1490nm Wavelength ONU Xpon Catv
UT-XP6243 is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, designed for fulfilling FTTH (Fiber To The Home) and triple play service demand of fixed network operators. The box is based on the mature Gigabit GPON technology, which has high ratio of performance to price, and the technology of 802.11n WiFi (2T2R), Layer 2&3 and high quality VoIP as well. It is adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of IT
Features :
| PON Interface | 1 GPON BOB (Bosa on Board) |
| Receiving sensitivity: ≤-28dBm | |
| Transmitting optical power: +1~+4dBm | |
| Transmission distance: 20KM | |
| Wavelength | TX: 1310nm, RX: 1490nm |
| Optical Interface | SC/APC Connector |
| Design Scheme | RTL9602C+RTL8192FR BOB(RTL8290B) |
| Flash | SPI Nor Flash 16MB |
| LAN Interface | 1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptive Ethernet |
| interfaces. Full/Half, RJ45 connector | |
| Wireless | Compliant with IEEE802.11b/g/n, |
| Operating frequency: 2.400-2.4835GHz | |
| support MIMO, rate up to 300Mbps, | |
| 2T2R,2 external antenna 5dBi, | |
| Support: Multiple SSID | |
| Channel: Auto | |
| Modulation type: DSSS, CCK and OFDM | |
| Encoding scheme: BPSK, QPSK, 16QAM and 64QAM | |
| CATV Interface | RF, WDM, optical power : +2~-15dBm |
| Optical reflection loss: ≥45dB | |
| Optical receiving wavelength: 1550±10nm | |
| RF frequency range: 47~1000MHz, RF output impedance: 75Ω | |
| RF output level: 78dBuV | |
| AGC range: -13~+1dBm | |
| MER: ≥32dB@-15dBm | |
| Operating Condition | Temperature: 0℃~+50℃ |
| Humidity: 10%~90%(non-condensing) | |
| Storing Condition | Temperature: -30℃~+60℃ |
| Humidity: 10%~90%(non-condensing) | |
| Power Supply | DC 12V/1A |
| Power Consumption | ≤6W |
| Dimension | 155mm×92mm×34mm(L×W×H) |
| Net Weight | 0.24Kg |

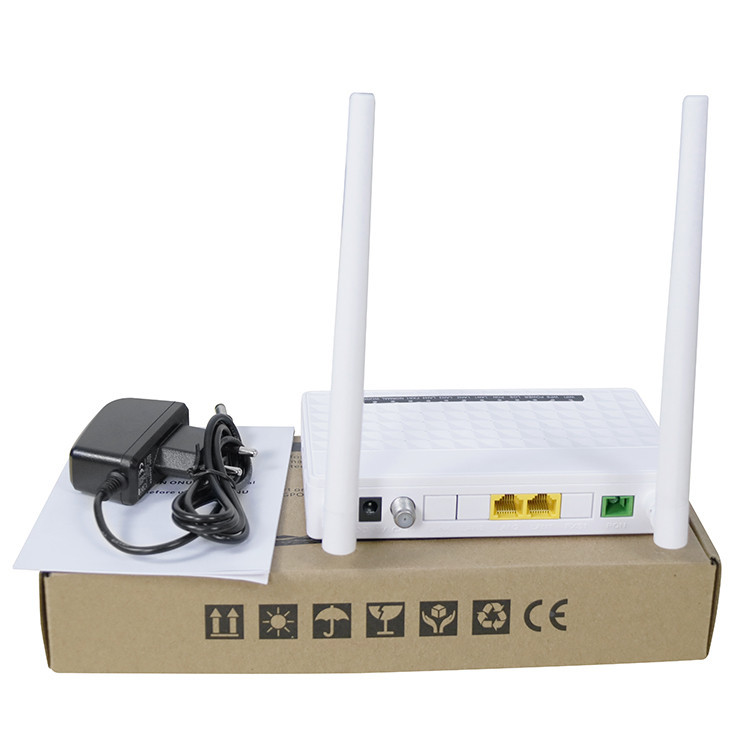

Details of Picture :
|
|
