Fiber Optic Fast Connector SC Connectors For Drop Cable Quick Connector Adapter For CATV Network

Description

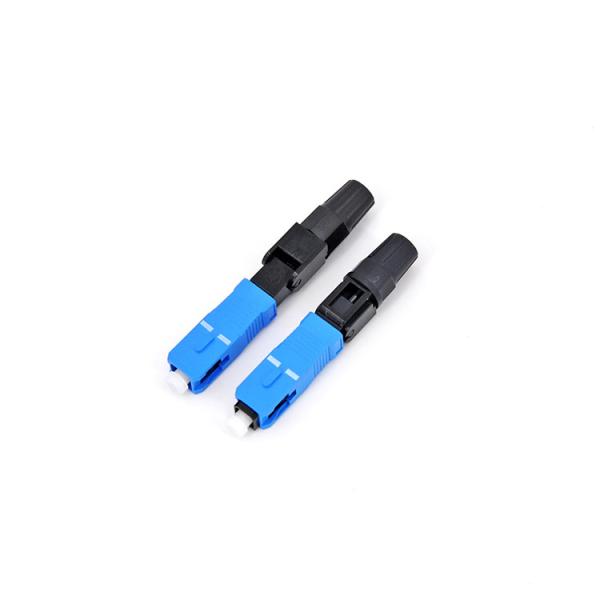

UT-King Fiber Optic fast Connector field-installable connectors are make fiber terminations fast, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Assembly of the quickly assembly fiber connector requires only normal fiber preparation tools, no electrical power supply is needed

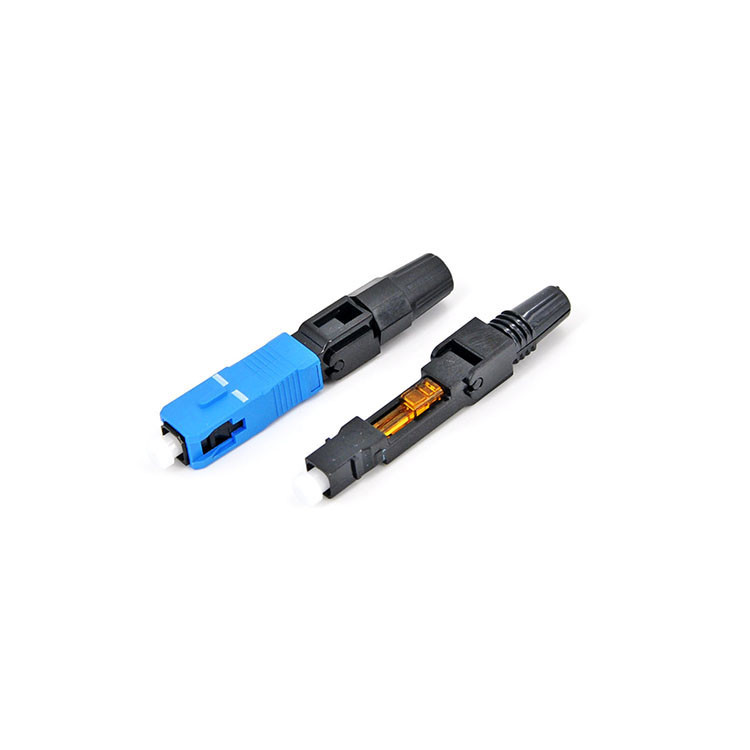

UT-King's fast Connector connectors are compatible with 250 µm and 900 µm optical fibers, as well as 900 µm, 2 mm and 3 mm cordage. All primary fiber types are supported, and each connector is color coded per industry-standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a “pass/fail” signal once physical contact is achieved.

Applications

• Compatible with standard SC connectors;
• Field installable, cost effective, user friendly;
• PC, APC polishing optional;
• No electricity required;
• FTTH cable, fiber optic cable optional;
• Reliable durable and superior optical performance
• Low insertion loss and high return loss
• Stable capability and high reliability
• Excellent mechanical capability

Specification
