    102mm SC Fiber Optic Terminal Box Access PLC Splitter

    Ask Lasest Price
    Brand Name : UT-King
    Model Number : FTAB416E
    Certification : CE,ROHS,ISO9001
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

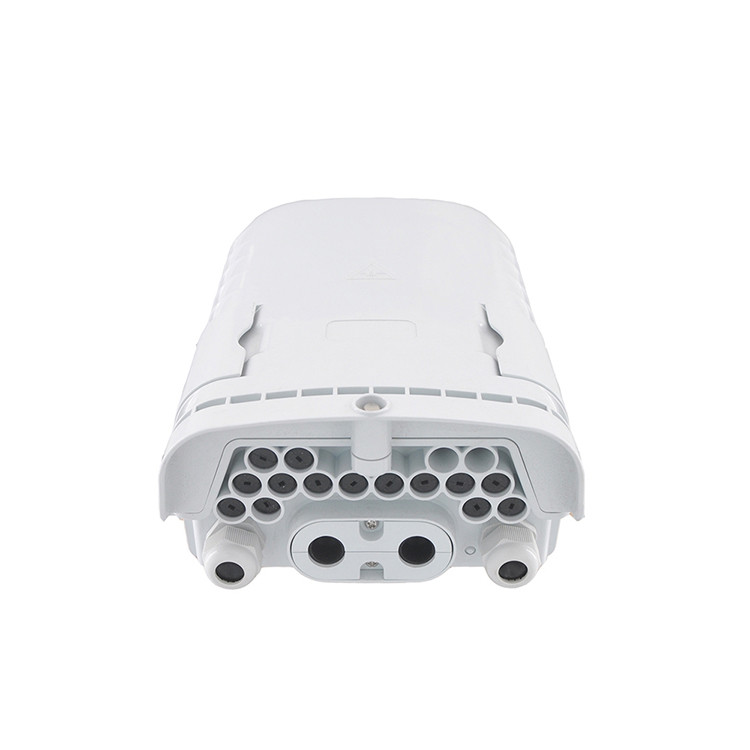

    102mm SC Fiber Optic Terminal Box Access PLC Splitter

    12 16 24 Core FTTH BOX Fiber Access Terminal Outdoor Fiber Termination Box Optical Cable Fiber Optic Box


    Description

    UT-King’s fiber access termination Box FATB416E fiber distribution NAP box is able to hold up to 16subscribers and 96splicing fiber.It is used as a splicing closure and a termination box for the feeder cable to connect with drop cable in FTTX network system.It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

    Features


    • Water-proof design with IP-65 Protection Level.
    • Integrated with flap-up splice cassette and adaptor holder
    • All stainless metal plate and anti-rusting bolts, nuts
    • Fiber bend radius control more than 40mm
    • Suitable for the fusion splicer or mechanical splice
    • 2 pcs of 1*8 PLC splitter can be installed as an option
    • Mechanical sealing structure and mid-span cable entry.
    • 16 ports cable entrance for drop cable
    • 16 adapter for drop cable patching

    Application

    • Wall mounting, pole mounting and aerial mounting installation
    • suitable for 2*3mm indoor FTTH drop cable an outdoor 4-7mm figure-8 self-supporting drop cable

    Specification

    ModelUT- FATB416E
    Size L*W*H(mm)287mm*172mm*102mm
    Protection levelIP65
    MaterialABS+PC
    Max splitting1:16 Mini PLC Splitter
    Weight (kg)1.8
    Cable diameter(mm)≤ 15
    Cable inlet/outlet:4 / 16
    Fiber core capacity16 (single core)
    ColorGrey/black
    Weight1.15kg/pcs

    Detailed Images

    102mm SC Fiber Optic Terminal Box Access PLC Splitter102mm SC Fiber Optic Terminal Box Access PLC Splitter102mm SC Fiber Optic Terminal Box Access PLC Splitter102mm SC Fiber Optic Terminal Box Access PLC Splitter
