| Model Number : | XP6104 |
| Brand Name : | UT-King |
| Certification : | CE RoHS FCC |
| Price : | $11.00/pieces 2-99 pieces |
FTTO GEPON Terminal ONT XPON ONU Router HGU With 1GE Ethernet Port Optical Network Unit Pon ONU 1GE
Overview:

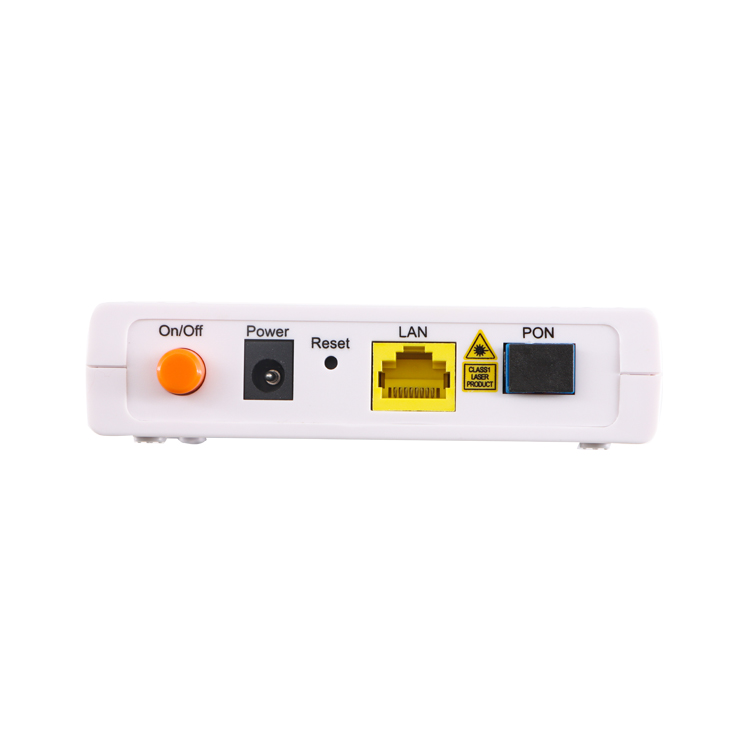

XPON ONU(XP6104,1GE) is a next-generation Gigabit Passive Optical
Network terminal, ideal for Fiber to The Home solution. It’s an
incredibly robust device allowing users to access high-speed
internet connections via its GPON or EPON port and share it with a
Gigabit Ethernet port. With the transmission rates of up to
2.488Gbps, one XPON port and one Gigabit Ethernet port, It provides
high-performance forwarding capabilities to ensure smooth VoIP, HD
video streaming experiences.It can match with GPON OLT and EPON OLT
automatically.
Features:
* Complies with ITU-T G.984.X and IEEE802.3X, provides
comprehensive GPON and EPON network compatibility
* Downstream rates of up to 2.488Gbps and upstream rates up to
1.244Gbps
* Fiber access and gigabit port provide incredibly fast transfer
speeds
* Supports OMCI (ONT Management Control Interface) and OAM remote
management
| XPON Standards | ITU-T G.984.x and IEEE802.3X |
| Interface | 1 10/100/1000Mbps RJ45 Ports 1 SC/UPC Port or 1 SC/APC Port |
| Chipset | Realtek, RTL9601D+RTL8290B |
| Data Rates & Wavelength | Upstream:1.244Gbps, 1310nm Downstream:2.488Gbps, 1490nm |
| Distance | 0~ 20Km Max |
| External Power Supply | DC 12V/0.5A |
| Environmental Requirements | Working temperature: 0°C～40°C Storage temperature: -40°C～70°C Relative humidity: 10%～90%, non-condensing |
| Quality of Service | Service Flow Classification based on VLAN Schedule rules Support SP/WRR Upstream Priority Label Support 802.1D User Priority Rate Limit and Traffic shaping Congestion Control Support Tail-Drop |
| Advanced Features | Upstream and Downstream FEC Dynamic Bandwidth Allocation(DBA) support NSR/SR Up to 7 T-CONTs and 4095 GEM Ports Optical power detection, Dying Gasp Terminal Silent mechanism 802.3az EEE Energy Conservation |
| VLAN | 802.1Q tag VLAN VLAN transparent mode/VLAN translation mode/VLAN trunk mode Authentication based on SN and Password VLAN Auto Detect |
| Security | AES Encryption ；Packet Filter based on VLAN |
| Management | Managed by Web, OMCI or OAM and Telnet, Specified the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic |
| IGMP | IGMP v2/v3；IGMP Snooping/Proxy |
1. Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based
on the quantity.
2. Can I get a free sample?
Yes,send inquiry,you will get free sample.
3. We are new in this PON fields, can you help me and recommend me
some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test.
5. OEM/ODM Service is available?
Yes, we have strong ability to offer customers ODM&OEM products
of highest quality.
And it will require the MOQ.
|
|
