    2.4G 5.8G WiFi Dual Band ONT XPON XP6484 For FTTH Network

    Ask Lasest Price
    Brand Name : UT-King
    Model Number : XP6484
    Certification : RoHS, CE, ISO9001
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000pcs per week
    Delivery Time : 5-10 days
    • Product Details
    • Company Profile

    2.4G 5.8G WiFi Dual Band ONT XPON XP6484 For FTTH Network


    Fiber Optic Equipment Ftth Ont Xpon XP6484 Catv With 2.4G&5.8G Wifi Dual Band Onu


    UT-XP6484 series is designed as HGU(Home Gateway Unit) in deferent FTTH solutions by UT-King, Thecarrier-class FTTH application provides data service access, based on mature and stable, cost-effective XPON technology. It can switchautomatically with EPON and GPON when it access to the EPON OLT or GPON OLT.XPON series adopts high reliability, easy management, configuration flexibility and good quality ofservice (QoS) guarantees to meet the technical performance of the module of China Telecom EPONCTC3,0 and GPON Standard of ITU-TG.984.X. UT-XP6484 is designed by Realtek chipset 9607C.

    Features :


     Support EPON and GPON Mode, and switch mode automatically
     Support ONU auto-discovery/Link detection/remote upgrade of software
     WAN connections support Route and Bridge mode
     Route mode supports PPPoE/DHCP/ static IP
     Support WIFI Interface and multiple SSID
     Support QoS and DBA
     Support port Isolation and port vlan configuration
     Support Firewall function and IGMP snooping multicast feature
     Support LAN IP and DHCP Server configuration;
     Support Port Forwarding and Loop-Detect
     Support TR069 remote configuration and maintenance
     Support CATV interface for Video Service
     Support POTS interface for Voip Service
     Specialized design for system breakdown prevention to maintain stable system
    Specification:
    ItemSpecification
    Main ChipsetZTE, ZAX279128+MT7603+MT7612
    PON Interface1 G/EPON port(EPON PX20+ and GPON ClassB+)
    Receiving sensitivity: ≤-27dBm
    Transmitting optical power: 0~+4dBm
    Transmission distance: 20km
    WavelengthTX: 1310nm, RX: 1490nm
    Optical Interface1* SC/UPC Connector
    LAN Interface1*10/100/1000Mbps RJ45 Ports
    3*10/100Mbps RJ45 Ports
    POTS interface1* FXS, RJ11 connector
    Support: G.711/G.723/G.726/G.729 codec
    Support: T.30/T.38/G.711 Fax mode, DTMF Relay Line testing
    according to GR-909
    WirelessCompliant with IEEE802.11b/g/n,
    Operating frequency: 2.4GHz and 5.8GHz
    support MIMO, rate up to 1200 Mbps,
    2T2R,2 external antenna 5dBi,
    Support: multiple SSID

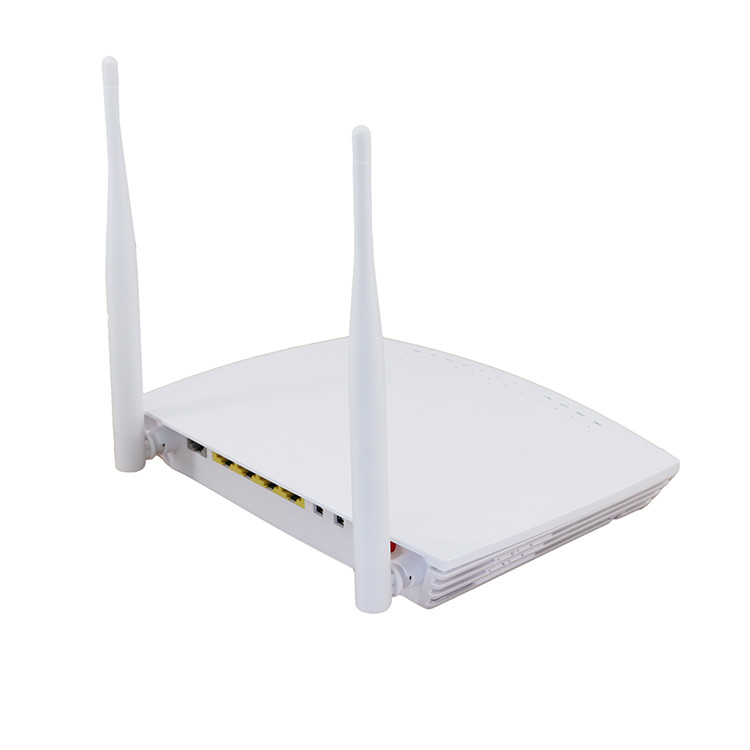

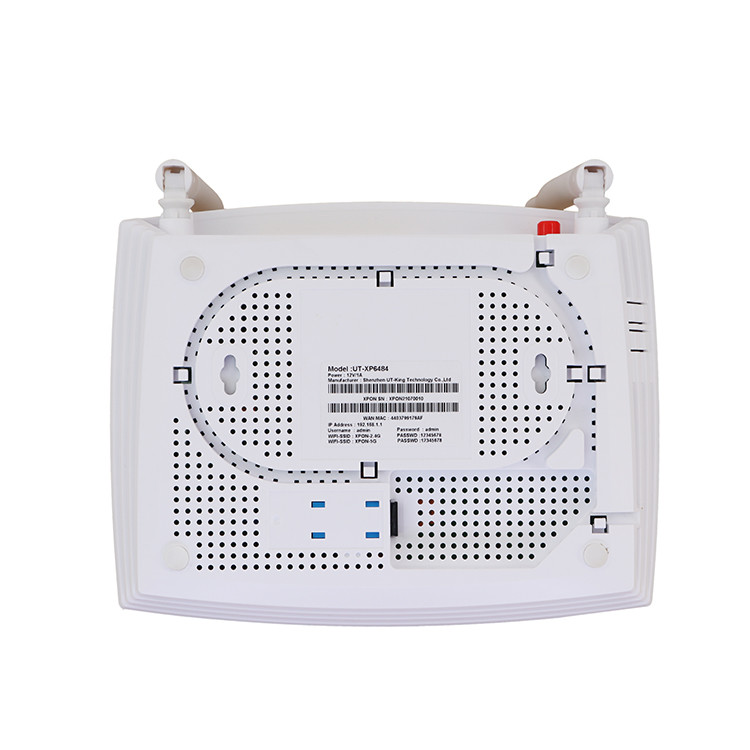

    Details of Picture :


    2.4G 5.8G WiFi Dual Band ONT XPON XP6484 For FTTH Network2.4G 5.8G WiFi Dual Band ONT XPON XP6484 For FTTH Network2.4G 5.8G WiFi Dual Band ONT XPON XP6484 For FTTH Network
