| Brand Name : | UT-King |
| Model Number : | XP6221 |
| Certification : | CE,ROHS,ISO9001 |
| Payment Terms : | Western Union, T/T |
| Supply Ability : | 1000 pcs/week |
| Delivery Time : | 7-10 work days |

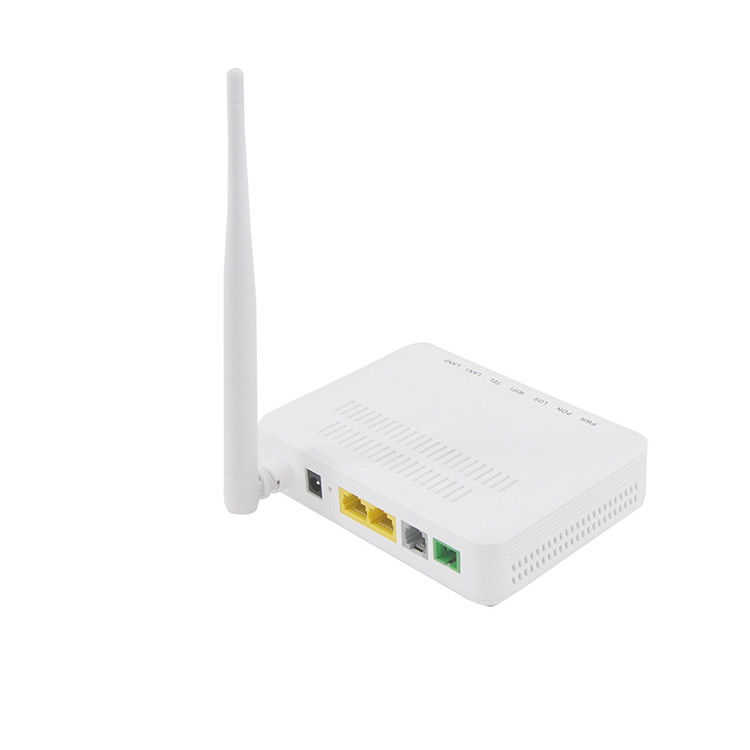

XPON ONU(UT-XP6221) is a next-generation Gigabit Passive Optical Network terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its GPON or EPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one XPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.It can match with GPON OLT and EPON OLT automatically.
XPON ONU makes EPON and GPON transparent and provides a unified interface for the upper management after the differences between EPON and GPON are blocked. Thus, no matter the terminal is EPON or GPON, the terminal configuration is the same. In this case, the network administrator only needs to focus on business management, which greatly improves the operation and maintenance management efficiency.
| Item | |
| XPON Standards | ITU-T G.984.x and IEEE802.3ah |
| Realtek,RTL 9602C+RTL8192FR | |

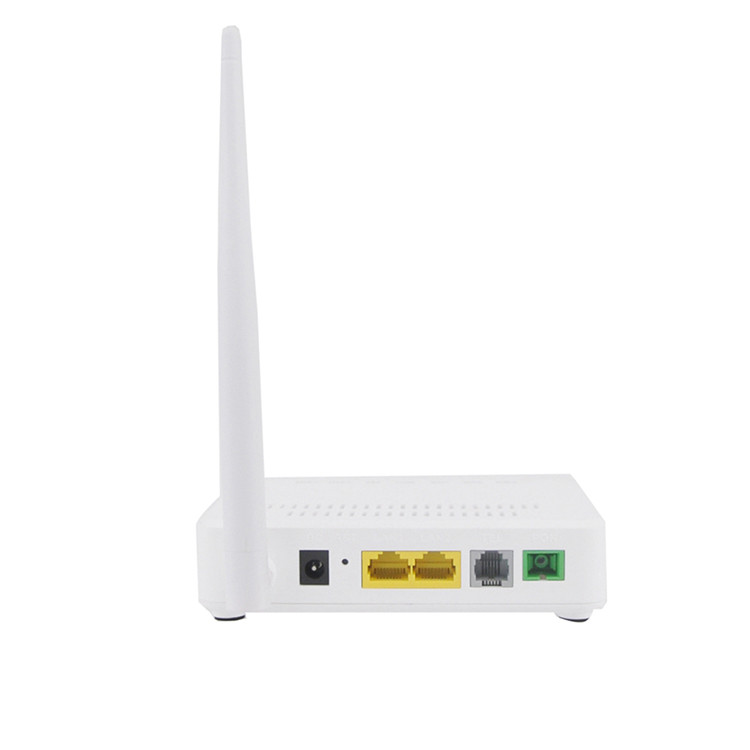

| Interface | 1*10/100/1000Mbps RJ45 Port 1*10/100Mbps RJ45 Port 1* SC/UPC Port or 1 SC/APC Port |
| Data Rates & Wavelength | Upstream:1.244Gbps, 1310nm Downstream:2.488Gbps for GPON mode and 1.244Gbps for EPON mode, 1490nm |
| RX sensitivity | < -28dBm @ 1490nm |
| WLAN | Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R two internal antenna,or external antenna(optional) |
| POTS interface | 1*FXS, RJ11 connector |
| Distance | 0~ 20Km Max |
| External Power Supply | DC 12V/1A |
| Dimensions (Length * Width * Height) | 180mm×145mm×35mm |
| Weight (Full-Loaded) | ≤0.4kg |
| Environmental Requirements | Working temperature: 0°C～40°C Storage temperature: -40°C～70°C Relative humidity: 10%～90%, non-condensing |
| Item | |
Quality of Service | Service Flow Classification based on VLAN Schedule rules Support SP/WRR Upstream Priority Label Support 802.1D User Priority Rate Limit and Traffic shaping Congestion Control Support Tail-Drop |
| Advanced Features | Upstream and Downstream FEC Dynamic Bandwidth Allocation(DBA) support NSR/SR Up to 7 T-CONTs and 4095 GEM Ports Optical power detection, Dying Gasp Terminal Silent mechanism 802.3az EEE Energy Conservation |
| VLAN | 802.1Q tag VLAN VLAN transparent mode/VLAN translation mode/VLAN trunk mode Authentication based on SN and Password VLAN Auto Detect |
| WIFI | Integrated 802.11b/g/n, 300Mbps, 2T2R. Support 128 connections. Support WEP and WPA/WPA2 security protocols. |
| Voice | Call protocol: SIP (IMS compatible), seamless compatible with all popular call agent. Integrate heartbeat function and support active/standby call agent. Voice coding: ITU-T G.711/G.723.1(5.3K/6.3Kbit/s)/G.729, auto-negotiate with call agent. Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length. Support high/low speed fax/Modem, bypass fax, and T38 fax. Support RFC2833 and redundant RFC2833, difference rings, MD5 authentication, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service. Multi-party conferencing. Line testing according to GR-909. IP address assignment: dynamic PPPoE/DHCP Client and static IP. Support WEB, CLI, TR069. Integrated OAM, XML, DHCP option 66 & 67 for auto configuration and firmware upgrade. Call loss is less than 0.01%. |
| Security | AES Encryption Packet Filter based on VLAN |
| Management | Managed by Web, OMCI or OAM and Telnet, Specified the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic |
| IGMP | IGMP v2/v3 IGMP Snooping/Proxy |
|
|
