1490nm Mini FTTH GPON OLT Fiber Network 380mm FTTX Small Capacity

16 Ports GEPON Optical Network OLT 10g Gpon Olt Mini FTTH OLT Optical Line Terminal

Description

GPON OLT 16PON(UT-GP8016) is a small-capacity cassette GPON OLT, meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/Unicom GPON, with super GPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. GPON OLT 16PON can be used with network management system so as to provide users with the comprehensive access and perfect solution.

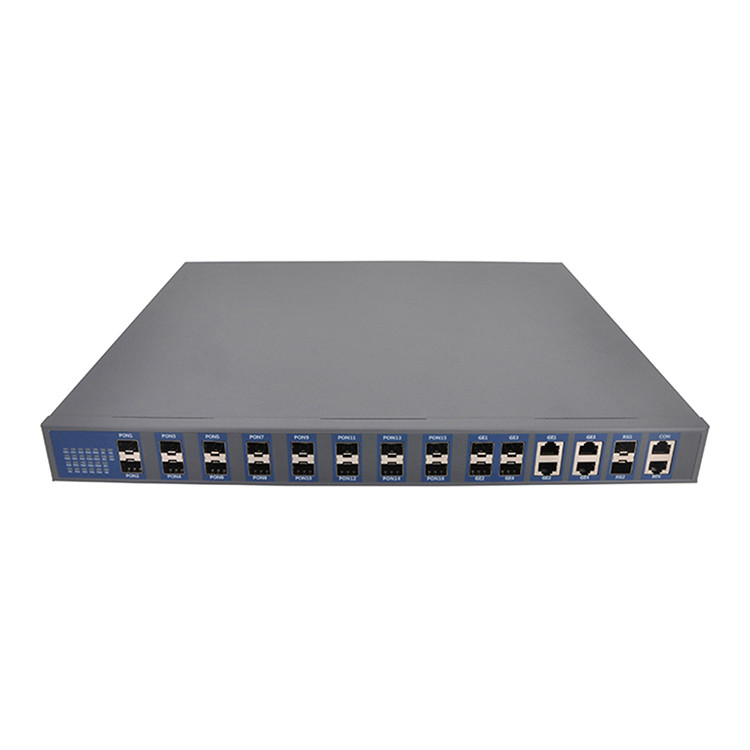

UT-GP8016 provides 16 * GPON port for downlink, 4 *GE combo port and 2* 10G SFP+ port for uplink. The height is only 1U for easy installation and space saving. It is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.

Features

Complies with ITU.G.984.x, provides comprehensive GPON network compatibility

Downstream rates of up to 2.488Gbps and upstream rates up to 1.244Gbps
Fiber access and gigabit port provide incredibly fast transfer speeds
Supports OMCI remote management

Parameter

Item
Service Port	16PON port, 4GE COMBO port, 2*10GE SFP+ port
Redundancy Design	Dual power supply Support double AC input or double DC input or AC+DC input
Power Supply	AC: input 90～264V　47/63Hz; DC: input -36V～-72V;
Power Consumption	≤110W
Dimensions (Width x Height x Depth)	440mm×44mm×380mm
Weight (Full-Loaded)	≤8kg
Environmental Requirements	Working temperature: -10°C～55°C Storage temperature: -40°C～70°C Relative humidity: 10%～90%, non-condensing

PON Features		ITU-TG.984.x standard Maximum 20 Km PON transmission distance access 128 terminals for single fiber PON Uplink and downlink triple churning encrypted function with 128Bits ONU terminal legitimacy certification, report illegal ONU registration DBA algorithm, the particle is 1Kbit/s Standard OMCI management function ONU batch software upgrade, fixed time upgrade, real time upgrade PON port optical power detection
L2 Features	MAC	MAC Black Hole Port MAC Limit 64K MAC (packet exchange chip cache 2MB, external cache 720 MB )
	VLAN	4K VLAN entries Port-based/MAC-based/protocol/IP subnet-based QinQ and flexible QinQ (StackedVLAN) VLAN Swap and VLAN Remark PVLAN to realize port isolation and saving public-vlan resources GVRP
	Spanning Tree	STP/RSTP/MSTP Remote loop detecting
	Port	Bi-directional bandwidth control Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring
Security Features	User’s Security	Anti-ARP-spoofing Anti-ARP-flooding IP Source Guard create IP+VLAN+MAC+Port binding Port Isolation MAC address binding to the port and MAC address filtering IEEE 802.1x and AAA/Radius authentication
	Device Security	Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack), ARP detection, worm and Msblaster worm attack SSHv2 Secure Shell SNMP v3 encrypted management Security IP login through Telnet Hierarchical management and password protection of users
	Network Security	User-based MAC and ARP traffic examination Restrict ARP traffic of each user and force-out user with abnormal ARP traffic Dynamic ARP table-based binding IP+VLAN+MAC+Port binding L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet Port-based broadcast/multicast suppression and auto-shutdown risk port URPF to prevent IP address counterfeit and attack DHCP Option82 and PPPoE+ upload user’s physical location Plaintext authentication of OSPF, RIPv2 and BGPv4 packets and MD5 cryptograph authentication
Service Features	ACL	Standard and extended ACL Time Range ACL Flow classification and flow definition based on source/destination MAC address, VLAN, 802.1p, ToS, DiffServ, source/destination IP(IPv4/IPv6) address, TCP/UDP port number, protocol type, etc packet filtration of L2～L7 deep to 80 bytes of IP packet head
	QoS	Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark CAR(Committed Access Rate), Traffic Shaping and flow statistics Packet mirror and redirection of interface and self-defined flow Super queue scheduler based on port or self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR. Congestion avoid mechanism, including Tail-Drop and WRED
	IPv4	ARP Proxy DHCP Relay DHCP Server Static Routing RIPv1/v2 OSPFv2 ECMP PBR
	Multicast	IGMPv1/v2/v3 IGMPv1/v2/v3 Snooping IGMP Filter MVR and cross VLAN multicast copy IGMP Fast leave IGMP Proxy PIM-SM/PIM-DM/PIM-SSM MLDv2/MLDv2 Snooping
Reliability	Loop Protection	Loopback-detection
	Link Protection	FlexLink (recover-time <50ms) RSTP/MSTP (recover-time <1s) LACP (recover-time <10ms) BFD
	Device Protection	VRRP host backup 1+1 power hot backup
Maintenance	Network Maintenance	Port real-time, utilization and transmit/receive statistic based on Telnet RFC3176 sFlow analysis LLDP GPON OMCI RFC 3164 BSD syslog Protocol Ping and Traceroute
Maintenance	Device Management	CLI, Console port, Telnet and WEB SNMPv1/v2/v3 RMON (Remote Monitoring)1,2,3,9 groups MIB NTP network management
