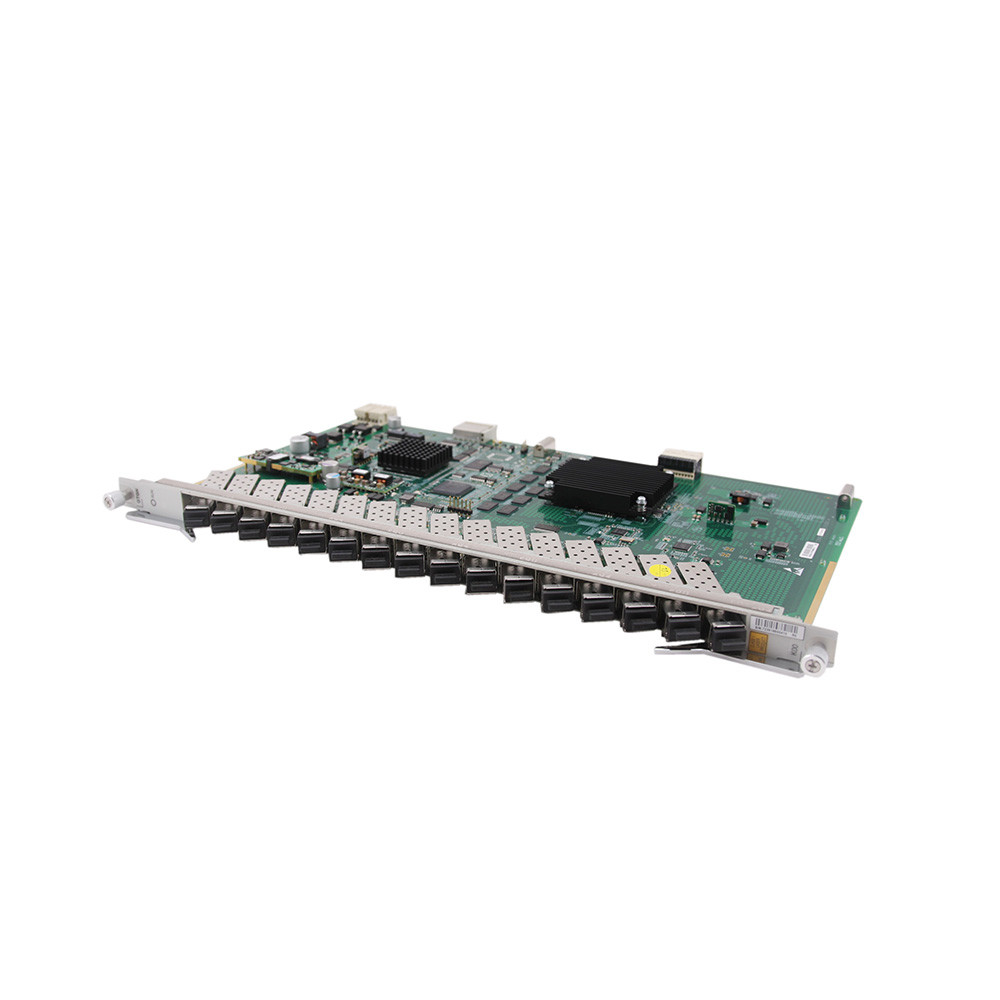

    ZTE 16 Port GPON OLT Interface Board Offering Service Access ZTE GTGH Service Card

    Ask Lasest Price
    Brand Name : ZTE
    Model Number : GTGH
    Price : USD 1300-1500per pieces
    Payment Terms : T/T, Western Union
    Supply Ability : 1000pcs one week
    Delivery Time : 5-12 work days
    • Product Details
    • Company Profile

    ZTE 16 Port GPON OLT Interface Board Offering Service Access ZTE GTGH Service Card

    ZTE 16-port GPON OLT interface board offering service access ZTE GTGH Service Card

    Product Features
    • High Density:
      – 16 GPON ports per card, up to 1:128 split ratio
    • GPON Function:
      – Support ONU power saving management defined in G.987.3
      – 1024 T-CONTs per PON port, 4096 GEM ports per PON port
    • High TM Performance:
      – Support H-QOS
      – 1024 queues and 356 schedulers per PON port
      – Support color-sensitive RED and WRED discard algorithm
    • Clock / Time Function:
      – Receive 1PPS+TOD signals and send them to the ONU through a PON channel
    • Low Power Consumption:
      – Newly developed lower power GPON MAC chip
      – Reduce 30% power consumption on industry average
    Product Paramenters
    Brand
    ZTE
    Model
    GTGH
    GPON Port
    16-GPON Port
    Type
    C++ Module: Single Fiber Bidirectional Optical Module, Class C++
    Operating Wavelength
    Tx: 1490 nm, Rx: 1310 nm
    Encapsulation Type
    SFP
    Port Rate
    Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
    Minimun Output Optical Power
    C++ Module : 4.50 dBm
    Maximum Output Optical Power
    C++ Module : 8.00 dBm
    Maximum Receiver Sensitivity
    C++ Module : -30 dBm @10E-10
    -32 dBm @10E-10
    Optical Connector Type
    SC/PC
    Optical Fiber Type
    Single-mode
    Reach
    20.00 km
    Overload Optical Power
    C++ Module : -12.0 dBm
    Extinction Ratio
    8.2 dB
    Weight
    1kg
    Dimensions (W x D x H)
    22.86 mm x 237.00 mm x 395.40 mm

    Details Images

    ZTE 16 Port GPON OLT Interface Board Offering Service Access ZTE GTGH Service CardZTE 16 Port GPON OLT Interface Board Offering Service Access ZTE GTGH Service CardZTE 16 Port GPON OLT Interface Board Offering Service Access ZTE GTGH Service CardZTE 16 Port GPON OLT Interface Board Offering Service Access ZTE GTGH Service Card
