    Optical Access Platform Dual 10G Uplink Card ZTE ZXA10 C300 OLT

    Ask Lasest Price
    Model Number : C300
    Price : USD 1200-1800 per pieces
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100pcs one week
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Optical Access Platform Dual 10G Uplink Card ZTE ZXA10 C300 OLT

    Brand new original Large Capacity Optical Access Platform dual 10G Uplink card ZTE ZXA10 C300 OLT

    ZTE ZXA10 C300 OLT is the world’s first future-proof and largest capability optical access platform, is developed with mass optical access roll-out as well as the economy in mind. Its powerful functions and high performance make.

    ZTE ZXA10 C300 OLT is an optical-access platform with large capacity and high density. Numerous access approaches are supported and the triple-play services can be realized. The customized scenarios are provided for various networks demands. ZXA10 C300 won the InfoVision Green Broadband Award at Broadband World Forum Europe (BBWF Europe) in 2010.

    Product Features
    * Unified platform for GPON/XGPON1 and P2P
    * Large capacity and high density: meet operators’ requirements for mass optical access roll-out
    * Future-proof: support NG-PON, like XGPON1, TWDM PON
    * Abundant service support capability: IPTV, VoIP, HSI, VPN, mobile backhaul, etc
    * Diverse interfaces: P2MP, P2P and TDM interfaces can also be provided for business and residential application
    * Enhanced multicast function: meets mass IPTV roll-out
    * Higher security assurance: ONT authentication, user ID identification, port isolation, address binding, packet filtering, and
    broadcast packet limitation.
    * Service differentiation: Comprehensive QoS mechanisms for voice, video and high-speed Internet services.
    * High reliability: key parts redundancy; support Type B and Type C protection for PON downlink and LACP/STP/UAPS/ERPS for uplink
    * Support 1588V2 and Synchronous Ethernet
    * Support embedded OTDR in SFP
    Product Paramenters
    Backplane capacity:
    5,76 Tbit/s
    Switching capacity
    800 Gbit/s
    Number of service cards
    14 (GPON/P2P/XG-PON1)
    Number of control cards
    2
    Number of power supply cards
    2
    Number of uplink cards
    2 (10GE/GE/FE/E1/T1)
    Maximum number of GPON subscribers
    16384
    Management Interfaces
    CLI, SSH, SNMP, telnet
    Dimensions
    10U (443,7 x 482,6 x 270 mm)
    Power
    -48 V (DC)
    Working temperature and humidity
    -25°C – +55°C, 5% – 95%
    Split Ratio
    up to 1:256
    Range
    20-60 km
    Maximum attenuation
    SFP B+ 28 dB, SFP C+ 32 dB
    Dynamic Bandwidth Allocation
    NSR-DBA, SR-DBA
    Support
    FEC, AES128, SCB, OLS
    Routing
    Static IPV4 a IPV6
    Multicast
    IGMP Snooping/Proxy/SPR a MLD Snooping/Proxy, 256 multicast VLAN, CAC, PRV, CDR
    QoS
    8 queues/port, SP, DWRR, DSPC (re)mark, CIR, PIR, EIR
    Security features
    L2-L4 ACL, IP a MAC source guard, DOS protection, MAC/IP anti-spoofing, Anti-flooding, DHCP 82
    Features
    VLAN, SVLAN, QinQ, VLAN Stacking, STP/RSTP/MSTP, DHCP Server, DHCP Relay, DHCP Proxy, IPv4/IPv6 dual stack
    Control and switching cards
    SCTM – Suitable for XGPON1, supports 16 port GPON cards,higher switching power, 4x 10GE uplink interface, 2x management interface
    SCXN – Supports 16 port GPON cards, 4x GE uplink interface, 2x management interface
    SCXL – No uplink interfaces, 2x management interface
    GPON cards
    GTXO – 4/8 XGPON1 ports, split ratio up to 1:256
    GTGO – 8 GPON ports, split ratio up to 1:256
    GTGH – 16 GPON ports, split ratio up to 1:128
    FTGK – 48 P2P ports (WDM) or 24 GE ports (separated fibers for uplink / downlink)
    Uplink cards
    GUFQ – 4x SFP (GE)
    GUSQ – 2x SFP (GE), 2x RJ45 (GE)
    XUTQ – 4x SFP (10GE)
    HUTQ – 4x SFP (2x10GE, 2xGE)
    HUVQ – 4x SFP (2x10GE/GE, 2xGE/FE)

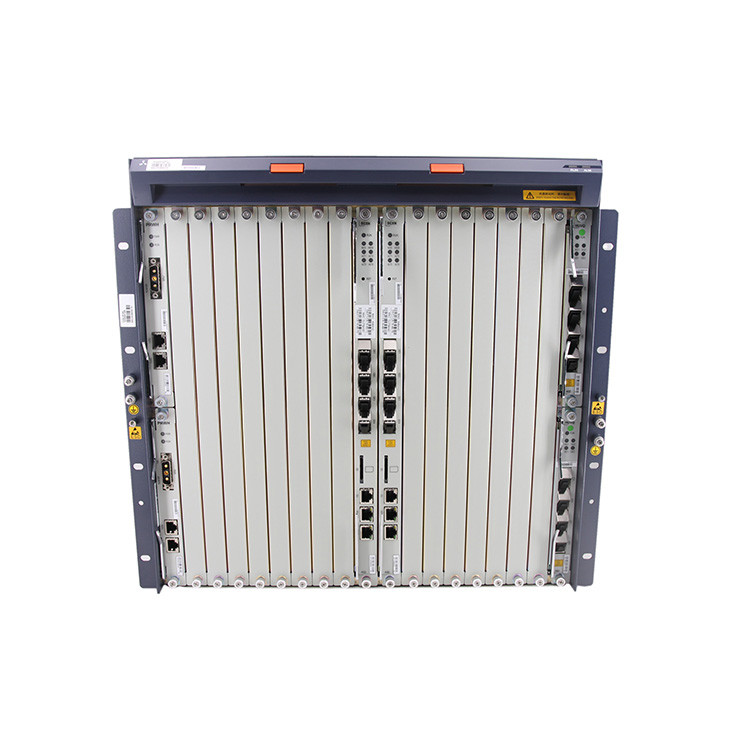

    Details Images

    Optical Access Platform Dual 10G Uplink Card ZTE ZXA10 C300 OLTOptical Access Platform Dual 10G Uplink Card ZTE ZXA10 C300 OLTOptical Access Platform Dual 10G Uplink Card ZTE ZXA10 C300 OLTOptical Access Platform Dual 10G Uplink Card ZTE ZXA10 C300 OLT
