    8 Port Interface Board With C+ C++ SFP For OLT ZTE GTGO Service Board

    Ask Lasest Price
    Brand Name : ZTE
    Model Number : GTGO
    Price : USD 450-520per pieces
    Payment Terms : T/T, Western Union
    Supply Ability : 1000pcs one week
    Delivery Time : 5-12 work days
    • Product Details
    • Company Profile

    8 Port Interface Board With C+ C++ SFP For OLT ZTE GTGO Service Board

    8 Port interface board with C+ C++ SFP for OLT ZTE GTGO service Board

    Product Features
    ZTE GTGO Service Board targets a large-capacity xPON aggregation access platform for next-generation networks and provides access aggregation and management control for HSI, VoIP, TDM, IPTV, CATV, mobile 2G/3G, WiFi and other full-service services for next-generation networks. Carrier-class QoS and security reliability. It meets the requirements of “large capacity, high density, meeting the network evolution and deployment requirements of “large capacity, less office”, enhanced access capability, and meets the requirements of network flattening. High-density interface board provides special solutions for large split ratio and long-distance application scenarios.

    Features

    * ZTE GTGO Service Board flexible, with powerful 1588/1PPS+TOD
    High-precision time/clock transmission capability adapts to TDM and mobile Backhaul bearers, complete VLAN/multicast/QoS service capability and excellent service performance, providing fine PON DBA dynamic bandwidth with The distribution mechanism and QoS mechanism are in line with the network construction requirements under the background of optical access and retreat.

    * ZTE GTGO Service Board carrier-class system and business security and reliability
    Supports Ethernet OAM and end-to-end management and operation, redundancy protection and hot-swap of key components, provides multiple network protection modes, supports optical link detection, and has strong security protection.

    * ZTE GTGO energy saving and emission reduction, green products help operators build green communications meet the industry’s energy-saving emission reduction need to support a variety of power-saving models, products lead-free, friendly to the environment, in the entire process of product development, production and transportation green.
    Product Paramenters
    Brand
    ZTE
    Model
    GTGO
    GPON Port
    8-GPON Port
    Type
    C+ Module: Single Fiber Bidirectional Optical Module, Class C+
    MAX Split ratio (Class B+)
    1:64
    MAX Split ratio (Class C+/Class C++)
    1:128
    Operating Wavelength
    Tx: 1490 nm, Rx: 1310 nm
    Encapsulation Type
    SFP
    Port Rate
    Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
    Minimum Output Optical Power
    C+ Module : 3.00 dBm
    Maximum Output Optical Power
    C+ Module : 7.00 dBm
    Maximum Receiver Sensitivity
    C+ Module : -32.00 dBm
    Optical Connector Type
    SC/PC
    Optical Fiber Type
    Single-mode
    Reach
    20.00 km
    Overload Optical Power
    C+ Module : -12.0 dBm
    Extinction Ratio
    8.2 dB
    Weight
    1kg
    Dimensions (W x D x H)
    22.86 mm x 237.00 mm x 395.40 mm

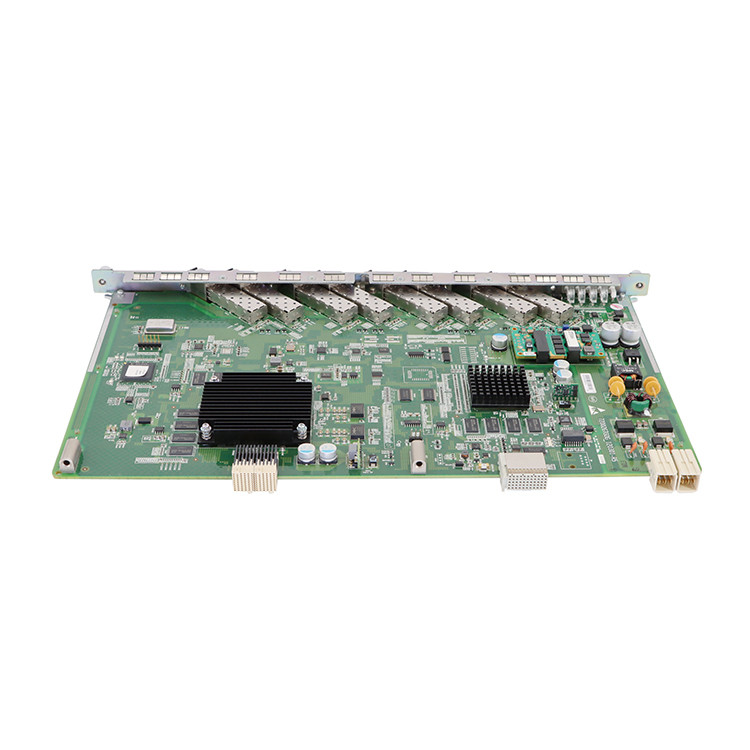

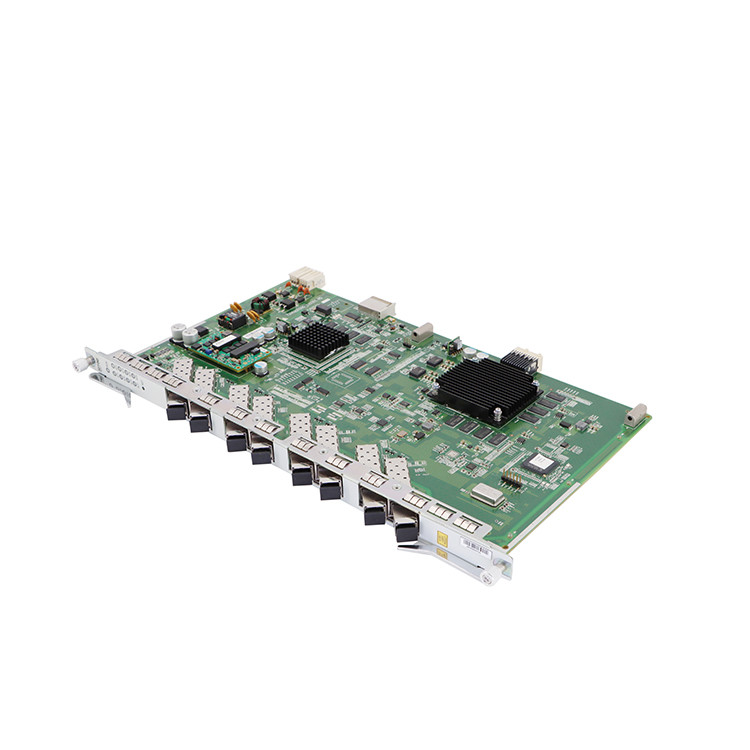

    Details Images

    8 Port Interface Board With C+ C++ SFP For OLT ZTE GTGO Service Board8 Port Interface Board With C+ C++ SFP For OLT ZTE GTGO Service Board8 Port Interface Board With C+ C++ SFP For OLT ZTE GTGO Service Board8 Port Interface Board With C+ C++ SFP For OLT ZTE GTGO Service Board8 Port Interface Board With C+ C++ SFP For OLT ZTE GTGO Service Board
