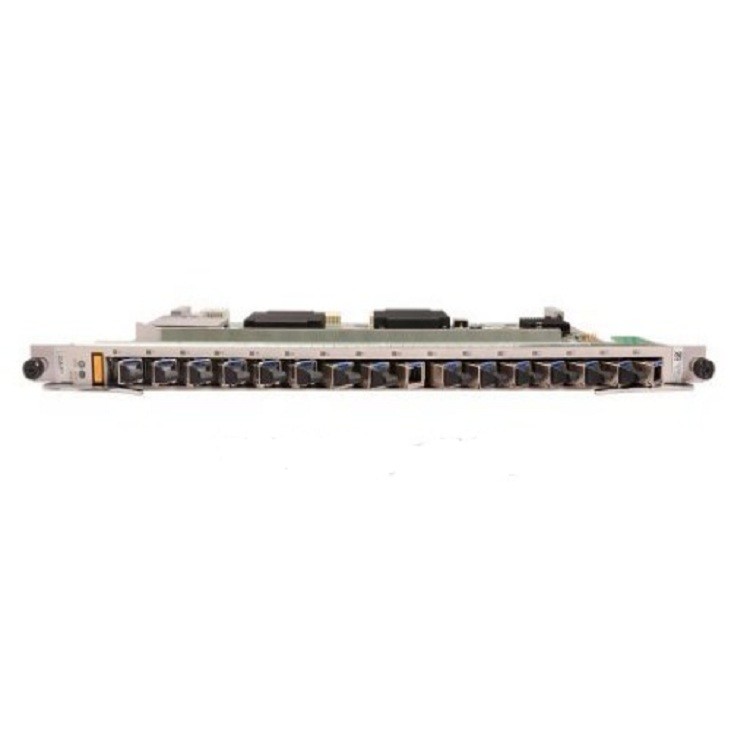

Huawei 16 GPON Ports Board Card GPFD For MA5608T OLT with C++ SFP module
Huawei 16-GPON Port Interface Card with C++ SFP module
Apply to Huawei MA5683T, MA5680T, MA5608T OLT system
Available at 3 versions: H802GPFD, H803GPFD, H805GPFD
Support split ratio 1:128
Transmit Speed: 2.488Gbit/s, Receive Speed: 1.244Gbit/s
Interface Type: SC/UPC
Max Transmit Distance: 20KM
Transmit Wavelength: 1490nm, Receive Wavelength: 1310nm
Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4
C++ SFP Module Optical Power: 6 dBm~10 dBm, Receiver Sensitivity: -35 dBm
GPFD is a 16 port GPON interface card of Huawei OLT, provide GPON service access from ONT. GPFD can maximum access 16*128 GPON subscribers. GPFD has different part number like H80D00GPFD01, H80D00GPFD02 etc, but basically you only need to identity H802GPFD, H803GPFD, H805GPFD version, and with B+, C+/C++ SFP module.
Specification:
| GPON Port | 16-GPON Port |
| GPON SFP Module Specification | |
| Type | C++ Module: One-fiber bi-directional optical module, class C++ |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | C++: Tx:2.488Gb/s, Rx:1.244Gb/s |
| Minimun Output Optical Power | C++ Module: 6.00 dBm |
| Maximum Output Optical Power | C++ Module: 10.00 dBm |
| Maximum Receiver Sensitivity | C++ Module: -35.00 dBm |
| Optical Connector Type | SC/UPC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | C++ Module: -15.0 dBm |
| Extinction Ratio | 8.2 dB |
| Device Specifications | |
| Dimensions (W x D x H) | 22.86 mm x 237.00 mm x 395.40 mm |
| Power Consumption and Maximum Frame Size | |
| Power Consumption | H802GPFD : Static: 45 W, Maximum: 73 W H803GPFD : Static: 39 W, Maximum: 61 W H805GPFD : Static: 26 W, Maximum: 50 W |
| Maximum Frame Size | 2004 bytes |
| Operating temperature | -25°C to +65°C |
Picture :
