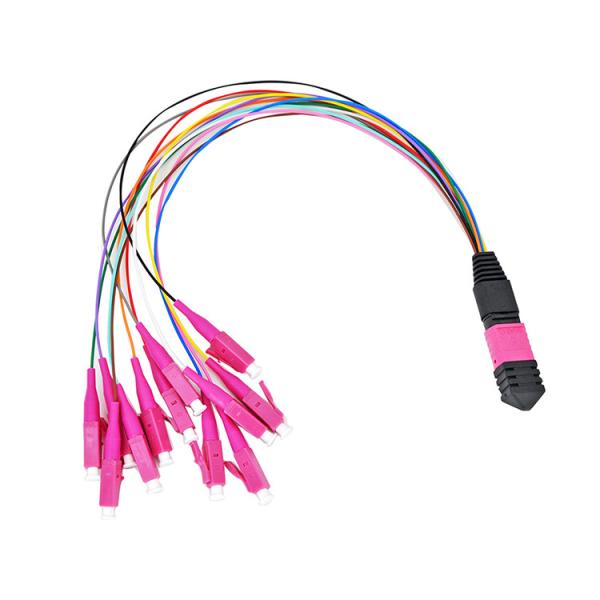

UT-King’s MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning Clearcurve fiber, it is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.
MTP fiber patch connectors make use of precision molded MT ferrules with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. MTP fiber cable can be mass terminated in combinations of 4, 8, 12, 24 and 48 fiber ribbon cables and are typically used in high-density backplane and Printed Circuit Board (PCB) applications within data and telecommunications systems.
Connector Performance-MTP
| Connector Type | 12-Fiber Or 24Fiber MPO/MTP (non-pinned) |
| Polish | PC(MM); APC(SM) |
| Housing Colour | MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow) |
| Insertion Loss, Typical (MTP/MPO) | ≤ 0.10 dB |
| Insertion loss, max. (MTP/MPO) | ≤ 0.3 dB |
| Return loss (MTP/MPO SM) | PC >55dB; APC> 60dB |
| Insertion Loss, Typical (LC/SC) | ≤ 0.10 dB |
| Insertion loss, max. (LC/SC) | ≤ 0.3 dB |
| Return loss (LC/SC SM) | PC >55dB; APC> 65dB |
| Durability(500 Matings) | < 0.2dB |
Fiber Cable Performance
| Fiber Type | OS2, OM1, OM2, OM3, OM4 |
| Fiber Count | 12,24,48,72,96,144 cores |
| Fiber Attenuation dB (OS2) | ≤0.38 Max ≤0.34Typ(1310nm) ≤0.25 Max ≤0.19Typ(1550nm) |
| Fiber Attenuation dB (OM1) | ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤1.2Typ(1300nm) |
| Fiber Attenuation dB (OM2) | ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm) |
| Fiber Attenuation dB (OM3) | ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm) |
| Fiber Attenuation dB (OM4) | ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm) |
Min.Bandwidth:Overfilled Launch[Mhz-km] | OM1≥200(850nm) ≥500(1300nm) OM2≥500(850nm) ≥500(1300nm) OM3≥1500(850nm) ≥500(1300nm)OM4≥3500(850nm) ≥500(1300nm) |
| Min.Bandwidth:Laser Effective Modal Bandwidth [Mhz-km] | OM3 ≥2000(850nm) OM4 ≥4700(850nm) |
| Outer diameter | 12fiber:3.0 or 5.5mm ; 24fiber:3.0 or 5.5mm |
| Outer jacket Colour | OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Purple or Aqua) |
| Outer jacket material | LSZH,OFNP,OFNR |
| Tensile strength | >500N |
| Operating Temperature | -40 ~ +85°C |
|
|
