Pon Epon Olt Equipment Optical Low Factory Price 10G 8 PON Ports EPON OLT Fiber Optic Equipment

Description

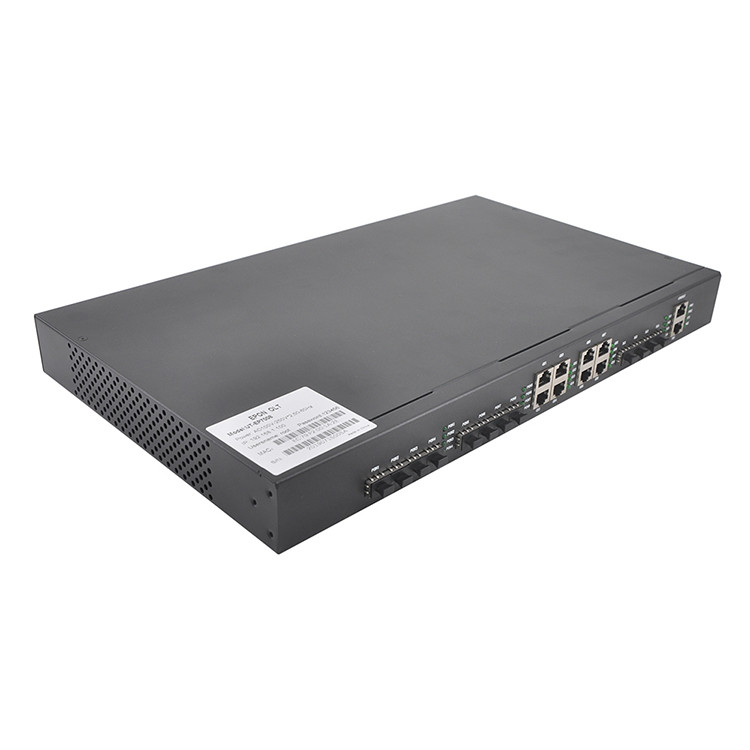

EPON OLT 8PON(UT-EP7008) ,the most effective access technology, is increasingly used in telecom broadband access, cable broadband access, FTTx, intelligent electric grid and surveillance.It is a small rack type EPON OLT. It consists of a EPON OLT and the network management card. I wors with EPON ONU series and ODN to establish a passive optic network.

Each PON port of 8 ports EPON OLT can support 64(max) terminal ONUs. It supports 10～20km transmission distance at the base of high bandwidth, and supplies full line speed L2/L3 transition capacity.

It supports maximum 256 Logical Link Identifiers (LLID) and Dynamic Bandwidth Allocation (DBA). It is adapt to small fiber access network, such as towns, villages, which don’t have large quantity users. 4 Ports EPON system greatly lowers the cost to establish network and assure high bandwidth. It is also adapt to FTTH/FTTB/FTTO projects, to implement fiber to the home, such as IP phone, Ethernet data and IPTV services access.

Features

• 1U 19 inch standard box EPON OLT with 4 PON ports
• Compliant with IEEE802.3ah YD/T1475-2006—EPON and China Telecom EPON Technical Requirements
• QoS based on port, VID, TOS and MAC address(32K Mac address)
• Support priority queue scheduling, support SP, WRR or SP + WRR scheduling algorithm
• Support 4096 VLAN, transparent transmission and conversion, support VLAN stacking (QinQ)
• Support 32K MAC’s line speed learning and aging, support MAC address restriction
• Support IEEE 802.1d (STP), 802.1w (RSTP) and MSTP Spanning Tree Protocol
• Support multicast Groups, IGMP v1/v2 snooping and IGMP Proxy
• Support port-based rate limitation and bandwidth control
• Support PON line AES and triple churing encryption
• Support Dynamic Bandwidth Allocation (DBA)
• Support ONU auto-MAC binding and filtering, support the ONU offline business configuration and automatically configure, manual/auto authentication
• Support the use of the ACL rules for packet filtering
• Support SNMP, telnet, CLI, OAM and Web management
• Provide logs, alarms and performance statistics
• Support remote software upgrade

Parameter

Item	EP7008
Service Port	8*PON port,4*1.25G SFP & 8*10/100/1000M RJ45 for uplink
Operating wavelength	1310 (RX)/1490(TX) 1.25G Upstream /1.25G Downstream
Capacity	1:64(max)
Redundancy Design	Support AC input or DC input
Power Supply	AC: input 100～240V　50/60Hz; DC: input 36V～75V;
Power Consumption	≤45W
Dimensions (Width x Height x Depth)	440mm×44mm×260mm
Weight (Full-Loaded)	≤6kg
Environmental Requirements	Working temperature: -10°C～55°C Storage temperature: -40°C～70°C Relative humidity: 10%～90%, non-condensing

Detailed Images

FAQ

Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.

Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.

Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
