| Brand Name : | UT-King |
| Model Number : | OADM |
| Certification : | CE,ROHS,ISO9001 |
| Supply Ability : | 1000PCS/Week |
| Delivery Time : | 3-5days |

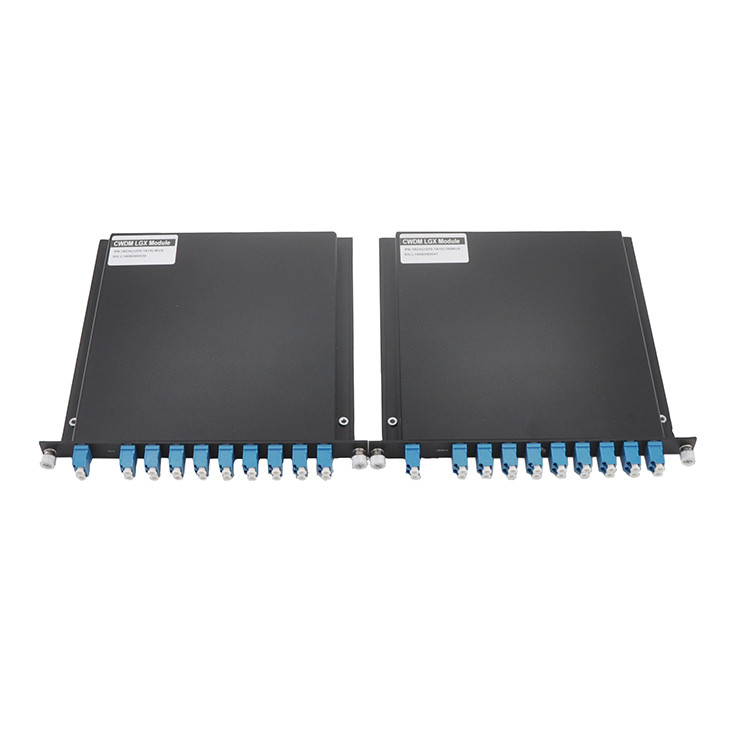

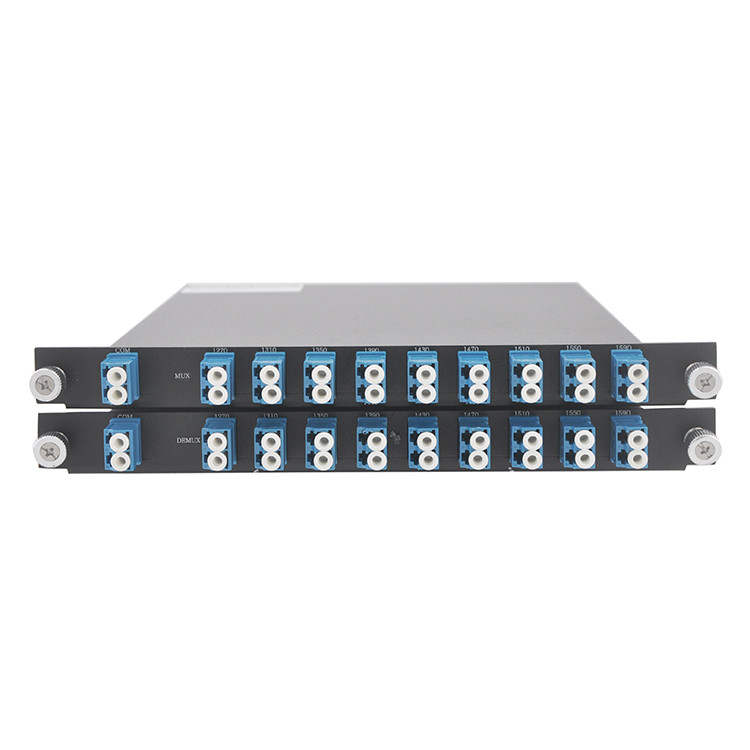

UT-King’s optical add-drop multiplexer (OADM) is a device used in wavelength-division multiplexing systems for multiplexing and routing different channels of light into or out of a single mode fiber (SMF). This is a type of optical node, which is generally used for the formation and the construction of optical telecommunications networks. "Add" and "drop" here refer to the capability of the device to add one or more new wavelength channels to an existing multi-wavelength WDM signal, and/or to drop (remove) one or more channels, passing those signals to another network path. An OADM may be considered to be a specific type of optical cross-connect.
| Parameter | Add | Drop | |
| Operation Wavelength (nm) | 1471, 1491 or 1470, 1490 etc. | ||
| Center wavelength accuracy (nm) | ± 0.5 | ||
| Channel Spacing (nm | 20 | ||
| Passband (@-0.5dB bandwidth)(nm) | >13 | ||
Insertion Loss (dB) | Add/Drop Ch. | < 0.9 | |
| Express Ch. | < 1.2 | ||
| Add/Drop Pass band Flatness (dB) | < 0.3 | ||
| Add/Drop channel Isolation(dB) | Adjacent Channel | N/A>30 | |
| Non-adjacent Channel | N/A>40 | ||
| Express channel Isolation (dB ) express | >25 | ||
| Insertion Loss Temperature (dB/°C ) | <0.003 | ||
| Wavelength Temperature Shifting (nm/ °C ) | <0.002 | ||
| PDL (dB) | <0.10 | ||
| PMD (ps) | <0.1 | ||
| Directivity (dB) | >50 | ||
| Return Loss (dB) | >45 | ||
| Rated power (mW) | 500 | ||
| Operation Temperature (°C) | 0 ~ +70 | ||
| Storage Temperature (°C) | -40 ~ +85 | ||
| Dimension (mm) | L100×W80×H10 | ||
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for
order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your
order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
|
|
